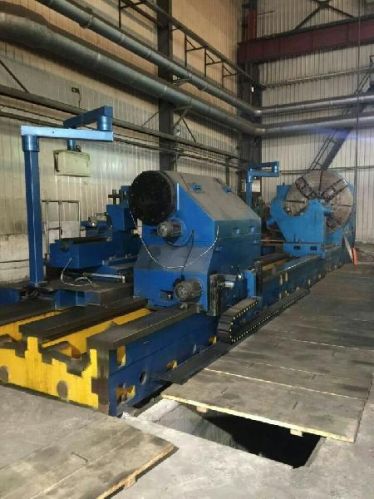

Heavy Duty Horizontal Lathes

Heavy duty horizontal lathe can be widely used in petrochemical industry, heavy machinery industry and automobile manufacturing.CNC heavy horizontal lathe is a modular design, with a strong technical and more stable performance. Horizontal Lathes can achieve automatic processing requirements,such as cone, surface, thread and so on.Heavy duty horizontal lathe has strong cutting performance, main key parts like bed,gear box and turret use high-strength cast iron so as to maintain a longer high-precision.Main motor is high horsepower and high torque motor,which can guarantee heavy cutting operations in the low speed state.
Technical specification of Heavy Duty horizontal lathe for sale CK61160
1 Maximum swivel diameter on the bed 1600mm
2 Maximum turning diameter over carriage 1250mm
3 Maximum length of workpiece 80100120 dm
4 Maximum weight between center 2040 t
5 Diameter of faceplate 1600mm
6 Maximum torque of faceplate 80KN.m
7 Range of spindle speeds rmin 1-200rmin
8 Maximum cutting force of carriage 80 KN
9 Range of feed rates ( long) 2-4500 mmmin
10 Range of feed rates( transverse ) 2-4500 mmmin
11 Rapid speed of of carriage( long) 4500 mmmin
12 Rapid speed of of carriage( transverse ) 4500 mmmin
13 Horizontal travel of tool post 675 mm
14 Travel of tailstock quill 300mm
15 Power of main motor 75KW
16 Machine weight(Approx) 100 t
