Heavy Duty Horizontal Type Lathe Machines

Heavy duty CNC horizontal lathe machine will process the industrial mechanical components with larger diameter in serious cutting or high-speed cutting, cherish large-scale flanges, industrial shafts and fittings, all types of valves, turbine elements, etc. It can be widely saw in wind power, petroleum, chemical industry, paper making, textile, mining, ship and aviation.
Technical specification of CNC Heavy Duty Horizontal type Lathe Machines  CK61160
1 Maximum swivel diameter on the bed 1600mm
2 Maximum turning diameter over carriage 1250mm
3 Maximum length of workpiece 80100120 dm
4 Maximum weight between center 2040 t
5 Diameter of faceplate 1600mm
6 Maximum torque of faceplate 80KN.m
7 Range of spindle speeds rmin 1-200rmin
8 Maximum cutting force of carriage 80 KN
9 Range of feed rates ( long) 2-4500 mmmin
10 Range of feed rates( transverse ) 2-4500 mmmin
11 Rapid speed of of carriage( long) 4500 mmmin
12 Rapid speed of of carriage( transverse ) 4500 mmmin
13 Horizontal travel of tool post 675 mm
14 Travel of tailstock quill 300mm
15 Power of main motor 75KW
16 Machine weight(Approx) 100 t
17 Overall dimensions(L×W×H) 1500×490×275 cm

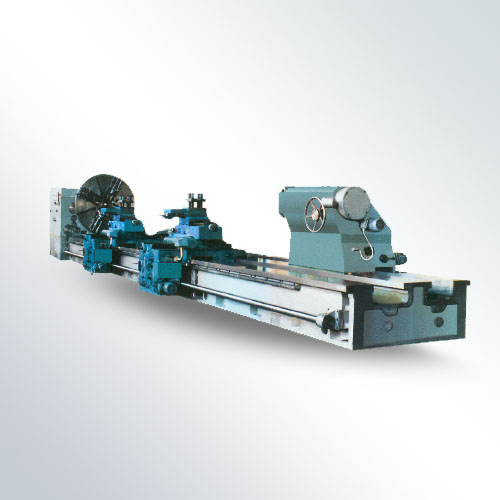

Photo of CNC Heavy Duty Horizontal type Lathe Machines
