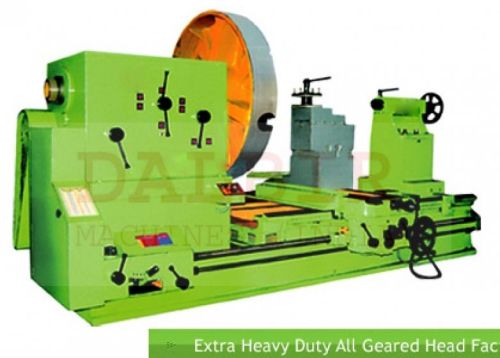

Heavy Duty Lathe Machine

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

Heavy Duty Lathe Machine that we offer is fabricated using high-grade metals and other components ensuring excellent quality. Our Lathe Machine has wide industrial application in different sectors. We make available Lathe Machine in different sizes and technical specifications. It is known for its sturdy construction and flawless performance. Our Lathe Machine is widely used for cutting and sanding a large number of grains. We provide Lathe Machine at reasonable price.

View More Details

Send Enquiry

Specifications

SPECIFICATIONS	DLB 2220	DLB 2018	DLB 2422	DLB 2824
CAPACITY
ADMIT BETWEEN CENTERS	1000 1500 2000 2500 3000 MM	2000 3000 4000 MM	2000 3000 4000MM	3000 4000 5000MM
BED WIDTH	560 MM	500	600	660
CENTER HEIGHT	500 MM	450	500	600
SWING OVER BED	1000 MM	900	1000	1200
SWING OVER SLIDE	760 MM	500	650	850
SWING OVER CROSS SLIDE	720 MM	450	600	800
SWING IN GAP	1570 MM	1250	1300	1400
SWING IN FRONT OF FACE PLATE	250MM	225	250	250
HEAD STOCK
MAIN SPINDLE BORE	104 MM	100	100	105
MAIN SPINDLE NOSE	TAPER NOSE/THREAD	TAPER NOSE / THREADED	TAPER NOSE / THREADED	TAPER NOSE / THREADED
MAIN SPINDLE TAPER	MT 5	M T 4	MT 5	M T 5
NO OF SPEEDS	18	18	18	18
SPEED RANGE	15 TO 750 RPM / 40 TO 1200	15 TO 450 R P M	10 TO 300 R P M	8 TO 250 R P M
TAIL STOCK
TAIL STOCK QUILL DIA	90MM	90MM	100MM	110MM
TAIL STOCK QUILL TRAVEL	250MM	250MM	300MM	300MM
TAIL STOCK QUILL TAPER	MT 5	MT 4	MT 4	MT 5
SLIDE & CARRIAGE
CROSS SLIDE TRAVEL	500MM	450MM	500MM	600MM
TOP SLIDE TRAVEL	200MM	200MM	200MM	250MM
MAX TOOL DIMENSIONS	40 X 40	35 X 35	40 X 40 MM	40 X 40 MM
STEADIES
MAX- MIN CAP OF FIXED STEADY	50 TO 300	50 TO 400	100 TO 500	100 TO 550
MAX-MIN CAP OF TRAVELLING STEADY	20 TO 100	20 TO 100	20 TO 100	20 TO 100
MOTORS
MAIN MOTOR KW	5.5 KW	3.7KW	5.5 KW	5.5 KW
OPTIONAL RAPID MOTOR FOR SADDLE	1.5KW OPTIONAL	1.5KW OPTIONAL	1.5KW OPTIONAL	1.5KW OPTIONAL
COOLANT PUMP MOTOR	011KW	0.11 KW	0.11 KW	0.11 KW
THREADS & FEEDS
LONGITUDINAL FEEDS	45 0.05 TO 1.5	45 0.05 TO 1.5	45 0.05 TO 1.5	45 0.05 TO 1.5
CROSS FEEDS	45 0.025 TO 0.75	45 0.025 TO 0.75	45 0.025 TO 0.75	45 0.025 TO 0.75
METRIC THREADS	45 0.5 TO 15	45 1 TO 15	45 1 TO 15	45 1 TO 15
WHITWORTH THREADS IN T P I	45 60 TO 4	45 60 TO 2	45 60 TO 2	45 60 TO 2
MODULER THREADS	45 0.25 TO 7.5	45 0.25 TO 7.5	45 0.25 TO 7.5	45 0.25 TO 7.5
DIAMETRAL PITCH THREADS	24 120 TO 6	24 120 TO 6	24 120 TO 6	24 120 TO 6
DIA OF LEAD SCREW	55MM	55MM	60MM	60MM
PITCH OF LEAD SCREW	2 T P I	2 T P I	2 T P I	2 T P I
STANDARD ACCESSORIES	STANDARD ACCESSORIES	STANDARD ACCESSORIES	STANDARDACCESSORIES	STANDARDACCESSORIES
DOG CHUCK PLATE	DOG CHUCK PLATE	DOG CHUCK PLATE	DOG CHUCK PLATE	DOG CHUCK PLATE
TRUE CHUCK PLATE	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
4 WAY TOOL POST	4 WAY TOOL POST	4 WAY TOOL POST	4 WAY TOOL POST	4 WAY TOOL POST
ELECTRICAL PANEL	OPTIONAL	OPTIONAL	OPTIONAL	OPTIONAL
STOPPER ROD	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE
STEADY REST	STEADY REST	STEADY REST	STEADY REST	STEADY REST
FOLLOW REST	FOLLOW REST	FOLLOW REST	FOLLOW REST	FOLLOW REST
DEAD CENTRE	DEAD CENTRE	DEAD CENTRE	DEAD CENTRE	DEAD CENTRE
REDUCTION SLEEVE	REDUCTION SLEEVE	REDUCTION SLEEVE	REDUCTION SLEEVE
