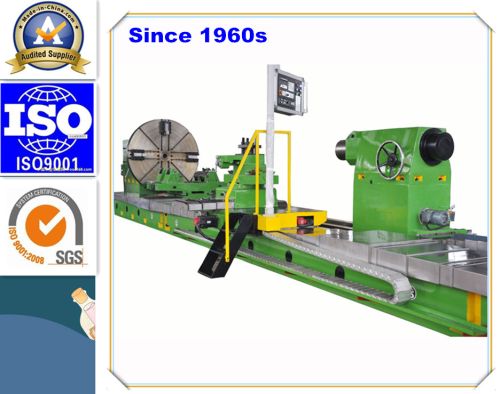

Heavy Duty Lathe Machine

We offer Heavy Duty Lathe Machine.
Universal Conventional Horizontal Lathe Machine
For Turning Grinding Cylinders, Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc
Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, Currently we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.
This series lathe machine has turning, grinding and milling functions, it can be called CNC machining center also. It can help you save time and improve efficiency for the part which needs to be turning and grinding
1). Reasonable Structure and excellent performance.
2.). High Rigidity, Stability and Precision Maintenance
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for over-sea installation,commissioning and Training the operators in customer's factory.
Technical Parameters:
Name CG61100 CG61125 CG61160 CG61200 CG61250 CG61300
Description Unit
Max. Swing Over Bed mm 1000 1250 1600 2000 2500 3000
Max. Swing Over the skateboard mm 650 800 1200 1650 1800 2800
Max. Weight of Work-piece T 10 15 20 20 20 40
Max. Length of Work-piece mm 3000-12000
Gears of Spindle Speed Infinitely Variable Speedstep-less speed
Range of Spindle Speed rMin 10-300 10-200 10-160 4-80 4-80 1.6-63
Chuck Diameter mm 800 1000 1250 1600 2000 2500
X,Z-Axis Feed Range mmMin 0-3000
Horizontal Stroke mm 500 625 800 1000 1250 1000
Longitudinal Stroke mm 3000-12000
Main Driving Motor Kw 11 22 45 75 75 75
Cutting Force (Carriage) Kn 4 6 20 40 40 60
Sleeve Diameter of Tailstock mm 180 180 290 290 290 480
Spindle Diameter of tailstock mm 125 125 160 160 160 240
