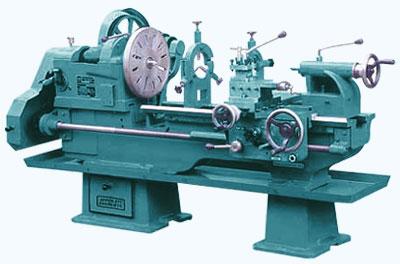

Heavy Duty Lathe Machines

Listing ID #4087643

Get Latest Price

Bed Length 5'6" to 22'
Centre Height 10" (Std) to 18" (in 1" graduation)
Spindle Hole 2-1/8" (Std. to 6-1/8"
Bed Width 12 3/4" (Std.) & 14 3/4"
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Product Details

Bed:The bed is deep in section and made of graded cast iron with diagonal webs to withstand torsional strains. The bed is strongly braced with cross ribs which provieds a rigid frame work to the lathe so that the initial accuracy of the lathe is maintained throughout its life. This is also provided with gap bed.
Head Strock:The headstock is of cone pulley type and the spindle pulley with GM Bushing. The spindle is of EN-8 steel of high tensile strength, Hardened and Ground having threaded nose running in plain parallel lead bonze bearings. Also with internal grinding for centre adaptor for more accuracy. Eight spindle speeds are obtained, four higher speeds and four lower speeds by applying the Helical backgearing;
Saddle:The saddle is mounted on invert V and flat ways of the bed and thus the carriage has a long bearing on tebed. This carries the cross slide and the compound rest with square tool post. The operating screws are fitted with micrometer dials. A dial indicator is provided to facilitate easy engagement of the leadscrew for thread cutting.
Apron:It is of double walled designed with independent drive motion for feeds and screw cutting with interlocking arrangements. All gears and bearings and the worm are lubricated from the oil sump provided.
Tail Stock:The tail stock is mounted on inner V and flat ways of the bed with the hardened and ground spindle made from EN-B steel with internal grinding for dead centres and other tools.
Standard Equipments:Face Plate, Dog plate, Centre Adopter, 2 Nos. Dead Centres, Tool Post Spaner, Change Gear Set of BSW and mm Pitch, Steady Rest, Follow Rest and Motor Pulley.

SPECIFICATIONS (Dimensions are in mm)	Accurate A	Accurate B	Accurate C	Accurate D	Accurate E	Accurate F	Accurate G
Length of Bed	1670(5'6")	2130(7")	2740(9')	3040(10")	3650(12")	4260(14")	4870(16')
Max. admit between centres	555(1'9")	1015(3'3")	1625(5'3")	1925(6'3")	2535(8'3")	3145(10'3")	3755(12'3")
Height of Centre	254(10")
Width of Bed	323(12 3/4")
Max.Swing over bed dia.	480(1'7")
Max Swing without gap dia.	785(2'7")
Max. Over cross slide dia.	285(11")
Width of gap in front of face plate	205(8")
Hole of Spindle	52(2 1/8")
Taper of centres	MT4
Lead screw dia. & Pitch	38(4TPI)
No. of Inch. threads & range	19(2 to24 (TPI)
No. of Metric. threads & range	13 (1 to 6 mm pitch)
No. of spindle speeds	8 (25 to 460 RPM)
Power of AC Motor 3 ph (1440 RAM)	2 HP	2 HP	3 HP	3 HP	3 HP	3 HP	5 HP
Approx. weight in kgs.	1350	1500	1600	1800	2000	2200	2400

Company Details

Accurate Machine Tools has been engaged in manufacturing of Precision Heavy Duty Lathe Machines since 1982. Right since inception, technological up gradation has played a major role in success of Accurate Lathe Machines. As a result of experience and research of long span, Accurate Lathe Machine has been ahead of competitors in precision, endurance and technological advancement.
The Lathe Machines have been manufactured as per IS: 1878 (part-l)- 1971. Each Heavy Duty (Belt Driven) Lathe Machine has been supplied with Instructions and Spare Parts Manual, Test Chart and Foundation Drawing.
The unit is located at very known city for machine tools – Rajkot. The company is equipped with the required precise machineries and equipments for testing and inspection. We also deal in manufacturing of any Special Purpose Machines (S.P.M.), right from the stage of designing to final products.
As demand occurs, we have developed Precision Heavy Duty All Geared Lathe Machines. This included many technological advancements in the production facilities ultimately resulting in precise and accurate products to give you better services. We have also developed Precision Medium Duty Lathe Machines, which are very economical compared to Heavy Duty Lathe Machines.
We have also developed Heavy Duty Straight Bed CNC Turning Centre for various kind of light & heavy jobs. We also design and manufacture Special Purpose CNC Machines for specific products with Work Holding Devices & Tooling solutions.
We are registered with National Small Industrial Corporation (NSIC), Rajkot Engineering Association and Machine Tools Manufacturing Association.
The company’s management is committed for assurance of quality and as a result ‘Accurate’ Lathe Machines have been tried, tested and whole heartily approved by more than thousands of customers all over India and abroad.
You may say that we are obsessed for maintaining accuracy and excellence in our all products.
We look forward to serving you at our best.
