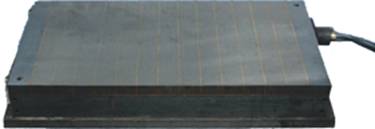

These Electromagnetic Chucks are designed for strong electro magnetic field to hold the work piece securely
Minimum mechanical deformation with solid one -piece housing Uniform magnetic force distribution with specially developed rigid top plateÂ
Minimum power consumption
Full magnetic surface offering easy operationÂ
Versatile clamping, excellent holding on a broad range of work piece sizes
Possibility to combine several chucks for a large uninterrupted surface
Low profile for more wheel head clearance Normal input voltage 110 VDC.Â
Back and end work stop railÂ
Minimum twice the length of chuck power cable
Â
control unitÂ
 D.C.POWER SUPPLY UNIT WITH MAG / DEMAG FACILITY
 VARIABLE CONTROL UNIT
NORMAL INPUT VOLTAGE 230 SINGLE PHASE.
SPECIAL SIZES ARE AVAIBLE ON REQUEST.
SPECIFICATIONS:
Cat No. Sizes mm. Pole Gap mm
L W H
SH - ELM - 1460 FP 350 X 150 X 100 4 + 1
SH - ELM - 1860 FP 450 X 150 X 100 4 + 1
SH - ELM - 2080 FP 500 X 200 X 100 4 + 1
SH - ELM - 2480 FP 600 X 200 X 100 4 + 1
SH - ELM - 2410 FP 600 X 250 X 100 4 + 1
SH - ELM - 2412 FP 600 X 300 X 100 4 + 1
SH - ELM - 3010 FP 750 X 250 X 100 4 + 1
SH - ELM - 3012 FP 750 X 300 X 100 4 + 1
SH - ELM - 3610 FP 900 X 250 X 100 4 + 1
SH - ELM - 3612 FP 900 X 300 X 100 4 + 1
SH - ELM - 4010 FP 1000 X 250 X 110 4 + 1
SH - ELM - 4012 FP 1000 X 300 X 110 4 + 1
SH - ELM - 6010 FP 1500 X 250 X 110 4 + 1
SH - ELM - 6012 FP 1500 X 300 X 110 4 + 1
SH - ELM - 6016 FP 1500 X 400 X 110 4 + 1
