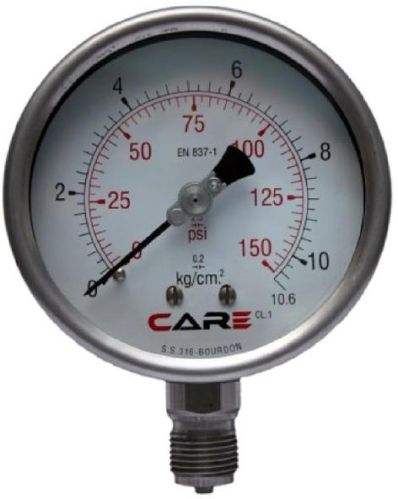

Heavy Duty Pressure Gauge

ApplicationChemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air conditioning
Scale Range0.. V acuum to 700 kg/cm2 & above on request
Accuracy1%
Thread Connection1/8″ , 1/4″, 3/8″, ½ ” BSP & NPT, M-10, M-12, M-20
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Scale Range0.. V acuum to 700 kg/cm2 & above on request
Accuracy1%
Thread Connection1/8″ , 1/4″, 3/8″, ½ ” BSP & NPT, M-10, M-12, M-20
ApplicationChemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air conditioning
Pressure ElementsBourdon Tube
OptionalLiquid Filled
Mounting of GaugeBottom, Surface, Back, Panel with 3 holes, Panel with bracket
Nominal Size (mm)40,50,63,80,100,150 ,250
DiaphragmNil
Case and BezelDrawn steel, SS 304
Wetted PartsBrass, SS 304 and other material on request

APPLICATIONS: With Liquid-filled case for applications with high dynamic pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.
Process Industry: Chemical / Petrochemical, Power Station, Mining, on and off shone, environmental technology, mechanical engi neering and plant construction.
FEATURES: Design : EN387-1,
Agency Approvals : CE
Dial : 4” (100 mm.), 6” (150 mm.), 8” (200 mm.), wh te aluminum,
Case : SS_304 or SS_316 (SS=Stainless Steel).
Window : Plain Glass or Safety Glass.
Pointer : Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel.
Accuracy : 4”, 6”, & 8” : ± 1.0% (± 1.6% with filling).
