Heavy Duty Resistance Butt Welder

A compact and flexible resistance welding solution, T. J. Snow’s RWMA size 1 Heavy Duty Resistance Butt Welder is cost effective and efficient. Model TJSBW-1 is air-operated and water cooled, capable of welding up to 38″ wire diameter. Components are typically stocked at our Chattanooga location, so we can assemble one to your specifications quickly. Special dies can be built to your specifications in our in-house machine shop.
Standard Features :
45 or 55 KVA transformer rated at 50% duty cycle
Dual voltage 220440 volt primary
Single phase AC 60 Hz
Multi-step transformer
Two (2) – 2.5″ x 4″ diameter clamp cylinders with adjustable stroke mounted to swivel arms
One (1) – 4″ x 2.5″ diameter upset cylinder with adjustable stroke
Mechanical stop for adjusting the amount of upset
Single stage shrouded foot switch for machine initiation
Four-way solenoid operated valves, speed regulators, hose and related hardware
Replaceable upper serrated jaws
Replaceable lower copper dies, complete size range available
Options :

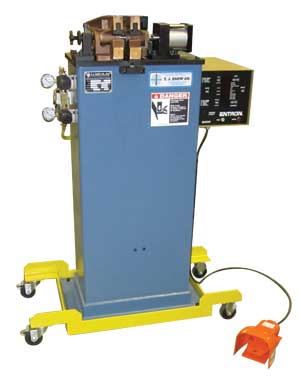

Casters (as shown in image)
Choice of welder controls – Microprocessor Type
Integrated or External lockable safety disconnect
