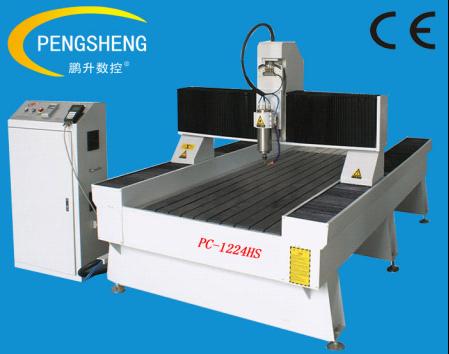

Heavy Duty Stone CNC Router

MOQ1 Piece(s)
X.Y working area(mm) 1200*2400
Working voltage AC380V/50/60 Hz ,3PH
X,Y structure Rack and pinion transmission
Z structure Germany ball screw
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Command G code*.u00*.mmg*plt
Resolution 0.01mm
Cooling mode Water cooling
Spindle power 4.5kw(constant power rate spindle)
Drive MotorStepper
Z structure Germany ball screw
Z working area 200mm
Interface USB
Operating system DSP(with separate operation cabinet)
X,Y structure Rack and pinion transmission
X.Y working area(mm) 1200*2400
Working voltage AC380V/50/60 Hz ,3PH
Spindle rotating speed 0-24000r/min
Max speed 30m/min
Table size 1480mm*2900mm
Diameter of cutter 3.175--12.7

We are offering heavy duty stone cnc router pc-1224hs.
1. lathe bed is welded with thick square tube and is processed by high temperature tempering treatment,good rigidity and heavy loading.
2.    three axes adopt imported high precision taiwan square orbit;x and y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;z axis adopts germany-made ball screw,with high precision and long life time.
3.    well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/wentai etc.
4.    it has the function of re-carving after break point and power failure
5.   it has the function of forecasting process time.
6.    adopting advanced dsp system with usb connection,operated with the handle,convenient operation.our engaber can completely work off-line and do not take any computer resources.
7.    auto oiling system
8.    adopt imported linear square orbit,high precision,heavy loading and long lifetime.
9.    the machine has water tank and automatic water cooling system.
10. Waterproof and dustproof design for the machine protects the transmission parts from broken.
