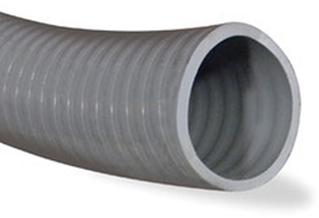

Heavy Duty Suction Hose

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Riverflex suction hose are ideal for heavy duty suction and delivery of abrasive materials in industry such as coal & mineral mines, stone & lime quarries, shipping, sewage disposal, aquaculture, paper mills, cement, chemicals petrochemicals, oil exploration, construction, etc

View More Details

Send Enquiry

Company Information

MILIN TUBES

Kalol, Gandhinagar, Gujarat

View Number

Member Since 16 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Description	Size (mm)	Wall Thickness (mm)	Dimensions (mm) + 0.75 mm			Pressure Kg/cm2 at 20 deg				Coil Length
Description	Size (mm)	Wall Thickness (mm)			ID		OD		WP		BP
Suction Hose (Heavy Duty)	25	4.5	25	34		8		24		30
	30	5	30	40		7		21		30
	40	5.5	40	51		4.5		13.5		30
	50	6	50	62		4.5		13.5		30
	65	6.5	65	78		4.5		13.5		30
	75	7	75	89		4.5		13.5		30
	100	7.5	100	115		4		12		15/18
	125	7.5	125	140		3		9		15/18
	140	8	140	156		3		9		15/18
	150	9.5	150	169		2.5		7.5		15/18
	200	11	200	222		2.5		7.5		6/4.5

RIVERFLEX HEAVY DUTY GREEN SUCTION HOSE
Size	Size	Diameter			Bending Radius MM	Pressure (at 30o C)				Standard Lengths MTRS
MM	INCH	ID MM		OD MM	Bending Radius MM		Working kg/CM2		Bursting kg/CM2
25	1"	25.4 +-0.5	31.5 +-0.5		48	8.0		25.0		30
30	1.25"	31.8 +-0.5	38.8 +-0.5		68	7.0		21.0		30
40	1.50"	38.0 +-0.5	46.3 +-1.5		70	5.5		18.0		30
50	2"	50.8 +-0.5	60.8 +-1.5		100	4.5		18.0		30
65	2.50"	63.5 +-1.5	74.5 +-1.5		120	4.5		18.0		30
75	3"	76.2 +-1.0	87.2 +-1.5		155	4.5		18.0		30
100	4"	101.2 +-1.5	114.2 +-2.0		213	4.0		14.0		15/18/30
125	5"	127.0 +-1.5	141.0 +-2.0		230	3.0		10.0		15/18
150	6"	152.4 +-1.5	169.4 +-2.0		375	2.5		9.0		15/18
200	8"	203.2 +-2.0	224.4 +-2.0		600	2.5		8.0		4.5/6
