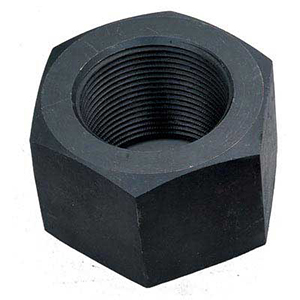

Heavy Hexagonal Nut or commonly known as Heavy Hex Nut is a common fastener with internal threads that screws on to the shank of a bolt. ASTM A563 Heavy Hex Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together. The two partners are kept together by a combination of their threads' friction, a slight stretching of the bolt, and compression of the parts to be held together.Â
SJS is one of the largest manufacturer of ASTM A563 Heavy Hex Nut established in UAE since 1992. We follow the manufacturing standard of fasteners such as ASTM AISI BS EN ISO DIN & JIS. We are always striving to diversify our ASTM A563 Heavy Hex Nut manufacturing capabilities to be able to satisfy the needs of our customers all around the globe regarding ASTM A563 Heavy hex Nut.
| NUT DIA | PITCH | F | C | H | W | WD | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MIN | MAX | ||
| M12 | 1.75 | 20.16 | 21.00 | 22.78 | 24.25 | 11.90 | 12.30 | 19.20 | 0.40 | 0.80 |
| M14 | 2.00 | 23.16 | 24.00 | 26.17 | 27.71 | 13.60 | 14.30 | 22.00 | 0.40 | 0.80 |
| M16 | 2.00 | 26.16 | 27.00 | 29.56 | 31.18 | 16.40 | 17.10 | 24.90 | 0.40 | 0.80 |
| M20 | 2.50 | 33.00 | 34.00 | 37.29 | 39.26 | 19.40 | 20.70 | 31.40 | 0.40 | 0.80 |
| M22 | 2.50 | 35.00 | 36.00 | 39.55 | 51.57 | 22.30 | 23.60 | 33.30 | 0.40 | 0.80 |
| M24 | 3.00 | 40.00 | 41.00 | 45.20 | 47.34 | 22.90 | 24.20 | 38.00 | 0.40 | 0.80 |
| M27 | 3.00 | 45.00 | 46.00 | 50.85 | 53.12 | 26.30 | 27.60 | 42.80 | 0.40 | 0.80 |
| M30 | 3.50 | 49.00 | 50.00 | 55.37 | 57.74 | 29.10 | 30.70 | 46.60 | 0.40 | 0.80 |
| M36 | 4.00 | 58.80 | 60.00 | 66.44 | 69.28 | 35.00 | 36.60 | 55.90 | 0.40 | 0.80 |
| M42 | 4.50 | 67.90 | 70.00 | 77.41 | 80.83 | 40.40 | 42.00 | 64.50 | 0.50 | 1.00 |
| M48 | 5.00 | 77.60 | 80.00 | 88.46 | 92.38 | 46.40 | 48.00 | 73.70 | 0.50 | 1.00 |
| M56 | 5.50 | 87.20 | 90.00 | 99.41 | 103.92 | 54.10 | 56.00 | 82.80 | 0.50 | 1.00 |
| M64 | 6.00 | 96.80 | 100.00 | 110.35 | 115.47 | 62.10 | 64.00 | 92.00 | 0.50 | 1.00 |
| M72 | 6.00 | 106.40 | 110.00 | 121.30 | 127.02 | 70.10 | 72.00 | 101.10 | 0.60 | 1.20 |
| M80 | 6.00 | 116.40 | 120.00 | 132.24 | 138.56 | 78.00 | 80.00 | 110.20 | 0.60 | 1.20 |
| M90 | 6.00 | 130.50 | 135.00 | 148.77 | 155.58 | 87.80 | 90.00 | 124.00 | 0.60 | 1.20 |
| M100 | 6.00 | 145.00 | 150.00 | 165.30 | 173.21 | 97.80 | 100.00 | 137.80 | 0.60 | 1.20 |
