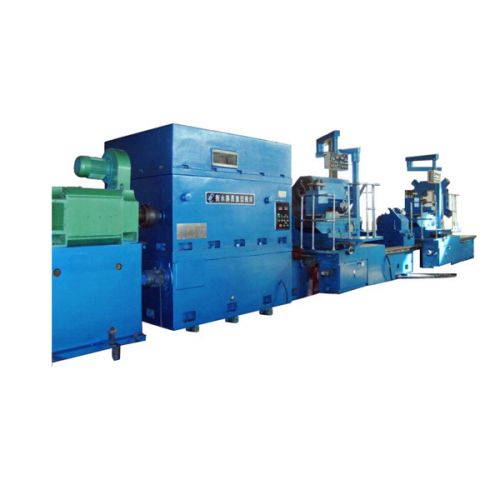

Heavy Load Heavy Duty Lathe Machine CW61160

Heavy duty horizontal lathe machine can do groove broaching,drilling, boring and various kinds of thread cutting and also can turn various internal and external metric,inch,module and diametrical pitch thread,the top slide may be used for turning short taper.
Features of Heavy duty horizontal lathe machine
1 Large power and good rigidity suitable for power and high speed cutting
2 Functions as end-facing,cylindrical and internal,turning,inch,module and pitch thread,drilling and boring.
3 Wide variable spindle speed range for rough and finish turning.
4 High strength resin cast iron bed. Ultra high frequency and precision guideways.
Heavy duty lathe machine CW61160 model:
CW61125CW61145CW61160CW61200CW61125CW61315
CK61100CK61125CK61160CK61200CK61250
Technical specification of Heavy duty lathe machine CW61160
1 Maximum swivel diameter on the bed 1600 mm
2 Maximum turning diameter over carriage 1250 mm
3 Maximum length of workpiece 120dm
4 Maximum weight between center 18t
5 Diameter of faceplate 1600mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds 1-200rmin
8 Maximum cutting force of carriage 50 KN
9 Total cutting force 70 KN
10 Range of feed rates ( long) 0.1-40 mmmin
11 Range of feed rates(Trans ) 0.05-20 mmmin
12 Range of feed rates(longitudinal) 0.025-10 mmmin
13 Rapid speed of of carriage( long) 3000 mmmin
14 Rapi
