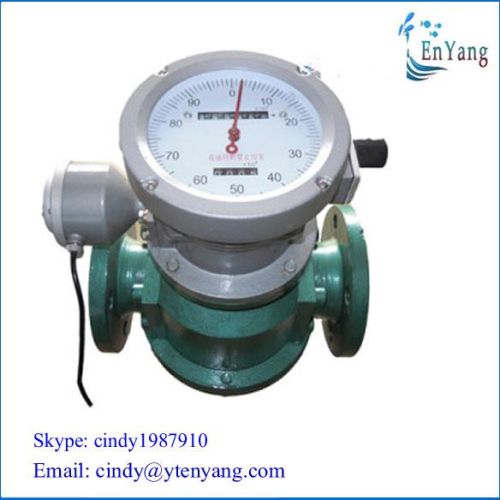

Cast Steel Heavy Oil Oval Gear Flow Meter DN10-DN200

₹ 18,900 / 10000 10000 Set

MOQ1 Set(s)
MaterialCast Steel,Cast Iron,Stainless Steel
Power SupplyMechanical 24VDC
SizeDN10-DN200
Accuracy0.2 0.5
Supply TypeSupplier
Preferred Buyer Location All over the world

Product Details

SizeDN10-DN200
Power SupplyMechanical 24VDC
Accuracy0.2 0.5
Output4-20mA Pulse
Country of OriginChina
MaterialCast Steel,Cast Iron,Stainless Steel
Allowed Basic Error(%)±0.5, ±0.2%
Viscosity0.3-2000MPa.S
Measured Medium4-20mA, Pulse Output(Hart and RS 485 Interface as
Working PressurePn1.6-6.3
Communication ProtocolModbus
Temperature0-160c
Communication InterfaceRS485

We offer gear flow meter.
General description
positive-displacement flow meter and oval gear flow meter are instruments used for the continuous and intermittent measurement and control of the pipe liquid flow ,which are typical of volumetric flowmeter,feature large flowrange ,low pressure loss, large viscosity range ,easy installation, high accuracy and can measure high temperature, high viscosity liquids with easy calibration .the meters are widely used for the flow measurement in the field of petroleum, chemical,chemical fiber,traffic,food industries and commerce,medical and sanitary departments.
diameter(mm) :dn10~200
accuracy u 0.5
o 0.2
temperature and pressure
n
