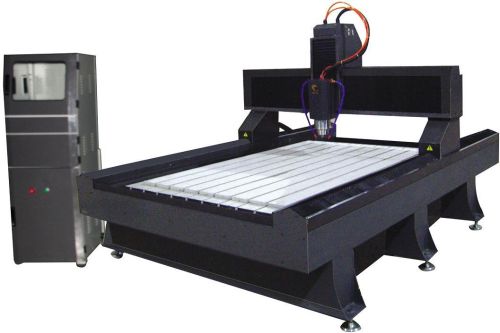

Heavy Stone Marble CNC Engraving Machine

CNC Heavy Stone Engraving Machine
This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
Feature:
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt Taiwan transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg
Performance Features:
1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
Thechnical Specifications:
Performance parameter 9015 1218 1224
X,Y Working area 900mmx1500mm 1200mmx1800mm 1200mmx2400mm
Z Working area 250mm 250mm 250mm
Table size 1100mmx2000mm 1400mmx2300mm 1400mmx2900mm
Processing precision 0.05mm 0.05mm 0.05mm
Reposition precision 0.02mm 0.05mm 0.05mm
Table structure aluminium aluminium aluminium
X,Y,Z structure X,Y,Z ballscrew X,Y,Z ballscrew X,Y,Z ballscrew
Command G CODE G CODE G CODE
Machine power 2KW 2KW 2KW
Max processing speed 6000mm/min 6000mm/min 6000mm/min
Max speed 8000mm/min 8000mm/min 8000mm/min
Working voltage AC380V/50Hz AC380V/50Hz AC380V/50Hz
Spindle power 5.5KW 5.5KW 5.5KW
Spindle rotating speed 0-24000rpm/min 0-24000rpm/min 0-24000rpm/min
Drive motor Stepper Stepper Stepper
Operation system PCI CARD control PCI CARD control PCI CARD control
Note: still other size models of this kind of machine, such as SC-1218, SC-1224 (the standard features of these two models are the very same as CX-9015, just different in size).
