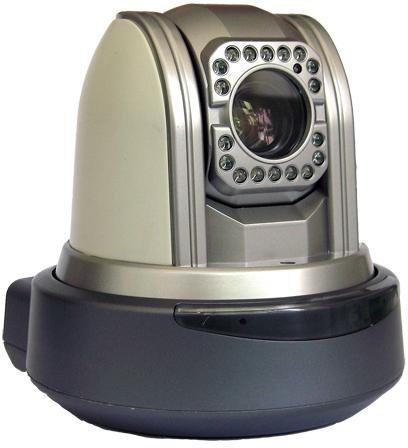

Heetoo Hd High Speed Dome IP Camera

Model ht1b03hmptz-l
ht1b04hmptz-m
ht1b05hmptz-h
cpu&system arm9 32-bit risc processo
working frequency achieve to 500mhz
flash:64m
ram:64m
embedded os:linux
video & image settings h.264 baseline profile @ level3.1 encoding
mpeg-4 visual, simple profile l0,1,2 &3 encoding
mjpeg/jpeg baseline encoding
simultaneous multiple streams
adjustable image size,quality,and bit rate
time stamp and text caption overlay
configurable brightness.contrast,saturation,sharpnees
supports 3gpp mobile surveillance
supports video cropping for bandwidth efficiency
flip & mirror
frame rates:
m-jepg: up to 25fps@d1
h.264: up to 25fps@d1 mpeg-4:25fps@d1
audio g.726 audio encoding
g.711audio encoding,u-law or a-law
audio input,audio output
high sensitivity mic input
supports two-way audio
networking protocols tcp/ip udp dhcp http pppoe ddns
dns ftp rtp/rtcp/rtsp upnp smtp
camera image sensor & horizontal resolution
ht1b03hmptz-l: 1/3 "sony 420 tv lines ccd sensor
ht1b03hmptz-m: 1/3 "sony 480 tv lines ccd sensor
ht1b03hmptz-l: 1/3 "sony 520 tv lines ccd sensor
minimum iiiumination
0 lux, with infrared lamp on
lens
8mm marked (4mm, 6mm, 12mm, 16mm, optional)
agc:auto
white balance:auto
support image flip
colour image turned black and wihte image:auto
alarm &
event management video motion detection
two i/o alarm input
one relay control output(one group normally on/closed switchs)
360° pan rotation and 90° tilt rotation
pan speed 0.5-35°/sec. And tilt speed 0.5-35°/sec
presetting bite speed 0.5-35°/sec. And precision ±0.10°
64 presetting bites
event notification using smtp or ftp ptz parameter
interfaces two i/o alarm input, one relay control output(one group normally on/closed switchs)
10/100 mbos ethernet,rj-45
12v dc power supply
microsd(t-flash)card slot
one audio line input,one audio line output
others support video motion detection
support sd card storage,up to 32g
supports 3gpp mobile surveillance
supports various pan/tilt protocols
802.1x port-based authentication for network protection
multi-level user access with password protection
support.web.browser,remote config/update,replay,record
10 clients on-line monitoring at the same time
sdk available for application development and system intergration
includes free standard multi-channel display and
recording central management software
supports personalized ie interface customization and modify
supports firmware upgrade
warranty:12 months
viewing system
requirements os:microsoft windows 2000/xp/vista/7
brower:mozilla firefox, internet explorer 6.x or above
cell phone:3gpp player
real player:10.5 or above
quick time:6.5 or above
housing temperature: 0-50celsius
humidity:90%
operating environment indoor
ir distance 20-40meters
physical
specifications power consumption:max.13w
operating voltage:dc12v
measurement:195mm×195mm×193mm
weight:net weight0.7kg,overall weight1.1kg
packaging:carton
