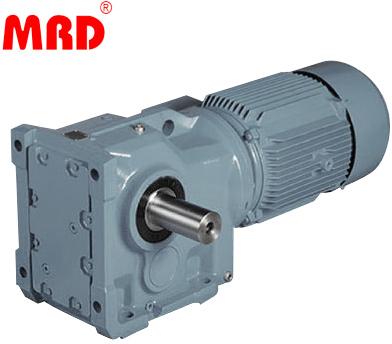

Helical Bevel Geared Motors

₹ 910 / 10000 10000 Piece

MOQ5 Piece(s)
Output Speed:0.15~270rpm
Material:Cast Iron Housing
Quality Control System:ISO9001:2008
Certificate for Motor:CE, UL, CSA
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Anhui Ferrocar Heavy Transmission Co., Ltd.

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Output Speed:0.15~270rpm
Material:Cast Iron Housing
Input Speed:1500rpm
Certificate for Motor:CE, UL, CSA
Gearing Arrangement:Helical-Bevel
Output Torque:Top to 50000nm
Transmission Ratio:5.36~179.86(Imax:18125)
Quality Control System:ISO9001:2008
Rated Power:0.12-200 Kw

We are offering helical bevel geared motors, gear reducer /gearbox (k37~ k187)
specifications:
1. Wide range of ratios
2. Foot mounted / b5 or b14 flanged mounted / solid or hollow shaft/ hollow shaft with keyed connection / shrink disk / splined hollow shaft
3. Moq: 1 set
4. Competitive price+ fast delivery
features:
1. Can be matched with different type of motor or power for input convenient for combination connect of different type of machines.
2. High transmission efficiency, can up to 96% for a single machine
3. Precise division of transmission ratio with a wide range, machine combination can produce a large ratio which with a very low output speed rotate
4. Designed for foot, shaft and flanged installation
technical data:
1, output torque: 200-50000(n. M)
2, rated power: 0.12-200(kw)
3, input speed: ≤1500 (rpm)
4, output speed: ≤280(rpm)
5, transmission ratio: ≥5.36
6, series: 3
7, install form: m1-m6
8, model no.: k/ka/kf/kaf/kh/khf/kv/kvf/kvz(37/47/57/67/77/87/97/107/127/157/167/187)
