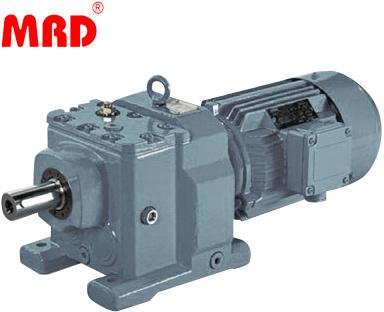

Helical Gear Motor

₹ 905 / 10000 10000 Piece

MOQ5 Piece(s)
Manufacturing Method:Cast Gear
Quality Control System:ISO9001-2008
Model NO.:R37~R167
Output Torque:270 to 18, 000
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Anhui Ferrocar Heavy Transmission Co., Ltd.

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Quality Control System:ISO9001-2008
Manufacturing Method:Cast Gear
Model NO.:R37~R167
Gear Unit Reduction Ratio:4.29 to 289.74
Output Torque:270 to 18, 000
Mounted Form:Horizontal

We are offering helical gear motor r series. (r/rx/rm) (r17-167)
available versions
1. Multi-stage
2. Foot-mounted or flange-mounted
3. Foot-mounted and flange-mounted
r series (two-stage and three-stage)
technical data
gear unit reduction ratio
[i]
3.21 to 289.74
output torque
[nm]
≤ 18000
motor power range
[kw]
0.12 to 160
rm series
rm gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.
