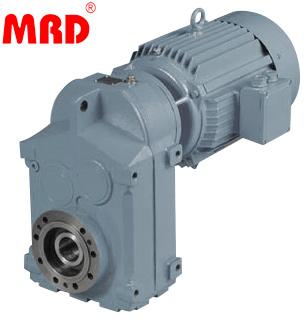

Helical Gear Reducer

We are offering f series parallel shaft-helical gear reducer (f series) (f37-f157).
parameters:
power:0.12-200kw
ratio:4.3-273
torque:0.11-18knm
features:
1. Parallel output , structure compact , carrying bigger torque,operation stable, voice low, lifetime long.
2. Mounting mode: foot-mounted, flange-mounted, torque arm-mounted.
3. Ratio: ratio of 2-stage is 8.1-191, ratio of 3-stage is 28.2-273, ratio of combination is up to18509.
4. For 2-stage basic type geared ,rotation direction of input shaft is the same that of output shaft; for 3-stage basic type geared ,their directions are reverse;for combination, please contact mrd.
5. Output mode: hollow shaft output or solid shaft output.
6. Average efficiency: 2-stage 96%, 3-stage 94%, f+r 85%.
applications:
the products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, military industry, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
