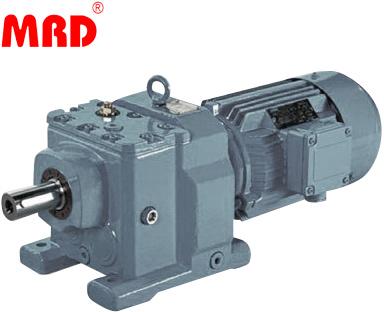

Cast Iron Helical Gearmotor, Brand Name : MRD

We are offering helical gearmotor.
r series helical gearmotor is a new generation mechanic-electrical integrated product, which designed basing on the modular system. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion
available versions
single-stage or multi-stage
foot-mounted or flange-mounted
foot-mounted and flange-mounted
rx series (single-stage)
for high output speeds, the exclusively single-stage gear units rx57 to rx107 offer compact solutions for your system design.
technical data
gear unit gear ratio[i] 1.30 to 8.65
output torque [nm]≤ 830
motor power range[kw] 0.12 to 45
helical gear unit versions
size
single-stage 57 57 57 57 57
rx.foot-mounted rx57 rx67 rx77 rx87 rx97 rx107
rxf...flange-mounted rxf57 rxf67 rxf77 rxf87 rxf97 rxf107
r series (two-stage and three-stage)
our complete range of helical gearmotors provides the optimum size and power solution for every drive task. And for operators with a "weight-watching" issue, our multi-stage gear units provide something special: thanks to their die-cast aluminum design, the models r07, r17 and r27 are three particularly efficient lightweights ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements.
