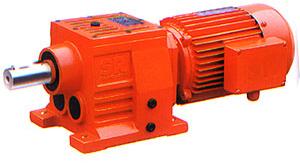

Helicalreducerbox

Product introduction
For SR geared moors, the boxes are cast prcisely by high stell material and pricesed at processing center; The gears are made of high-quality alloy steel, are treated with surface hardening and gear ground; And the key parts are imported. The whole geraed motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency. SR geared motor have reached the advance level, can replace the same kind of products imported.
Equipment method:
1. Various motors can be equipped
2. Direct connection motor or double-shaft motor
3. Foot installment or flange installment
Technique parameter:
1. Power: 0.12 KW~200 KW
2. Torque: 200 N. M~50000 N. M
3. Ratio: 5~33000
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Dimension tolerances
Shaft heights
H less than250mm
Diameter tolerance of hollow shaft
D�ISOH7
Flange centering shoulder tolerance
B-ISOH7
Diameter tolerances
D less than50mm
H more than250mm
D more than50mm
Center holes of shaft terminal
More than13-16mm---M5
More than 16-21mm---M6
More than 21-24mm---M8
More than 24-30mm---M10
More than 30-38mm---M12
More than 38-50mm---M16
More than 50-85mm---M20
More than 85-130mm---M24
More than 130mm---M30
Helical-bevel geared motors are avaliable in the following mounting methods:
Foot installation
B5 flange installation with hollow shaft
B5flange installation with splined hollow shaft
Footinstallation with hollow shaft
B5 flange installation with hollow shaft and shrink disc
Foot installation with spined hollow shaft
Installation of hollow shaft(with countertorque arm)
Installation of splined hollow shaft(with countertorque arm)
Foot installation with hollow shaft and shrink disc
Installation of hollow shaft and shrink disc(with countertorque arm)
B5 flange installation
B14 flange installation with hollow shaft
B14 flange installation with splined hollow shaft
B14 flange installation with hollow shaft and shrink disc
