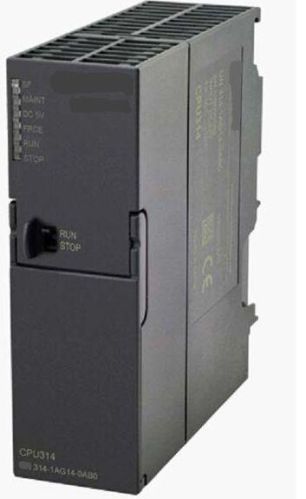

The Hema Make PLC System Hema 300 Series, which we bring to you, stands out of all others on the counts of precision, perfection, and pricing. The PLC System is stringently checked many a times to ensure that only zero-defect product is offered to all the buyers.
Note :
| HEMA S7 200 PROFIBUS DP MODULE | ||
| Model | MLFB | Description |
| HEMA 300 Series PLC Equivalent to Siemens S7-300 Series PLC | ||
| HEMA 300 CPU | ||
| Model | MLFB | Description |
| CPU 314-2PtP | HEMA314-2AG14-0AB0 | CPU 314-2PtP is the CPU module of HEMA 300 series PLC. It’s developed based on advanced technology platform, and using innovative design philosophy; Processing speed is very fast, easy to use, and has a perfect performance in storage capacity and compatibility. It’s small in size and has a compact structure. It’s applied to medium program and applications which hava a higher requirement to processing capacity and respond speed. |
| HEMA 300 DI MODULE | ||
| Model | MLFB | Description |
| SM321 16DI NPN | HEMA321-1BH02-0AA0 | 16 DI, 24V DC; High HEMA ity stable |
| SM321 16DI PNP | HEMA321-1BH50-0AA0 | 16DI,24V DC; High immHEMA ity;stable |
| SM321 16DI | HEMA 321-1FH00-0AA0 | 16DI,120/230V AC; High immHEMA ity;stable. |
| SM321 32DI | HEMA 321-1BL00-0AA0 | 32DI,20V DC; High immHEMA ity;stable |
| HEMA 300 DO MODULE | ||
| Model | MLFB | Description |
| SM322 8DO | HEMA 322-1BF01-0AA0 | 8 DO , 24V DC Transistor optical isolation with high immHEMA ity |
| SM32 16DO | HEMA 322-1BH01-0AA0 | 16 DO , 24V DC Transistor optical isolation with high immHEMA ity |
| SM322 16DO RELAY | HEMA 322-1HH01-0AA0 | 16DO,24V DC;Relay;Optical isolation with high immHEMA ity |
| SM322 32D0 | HEMA 322-1BL00-0AA0 | 32DO,24V DC; Transistor;Optical isolation with high immHEMA ity. |
| HEMA 300 AI MODULE | ||
| Model | MLFB | Description |
| SM331 8AI | HEMA 331-1KF02-0AB0 | 8AI;voltage/current/RTD temperature measurement modules; Resolution:13bits Optical isolation; high immHEMA ity;stable. |
| SM331 8AI | HEMA 331-7KF02-0AB0 | 8AI;Full-fHEMA ction temperature measurement modules; Resolution:16bits;Short-circuit protection ;High immHEMA ity;stable |
| SM331 8AI RTD | HEMA 331-7PF01-0AB0 | 8AI;RTD temperature measurement modules; stable |
| SM331 8AI TC | HEMA 331-7PF11-0AB0 | 8AI; Thermocouple temperature measurement modules; Input voltage range: ±150mV |
| HEMA 300 AO MODULE | ||
| Model | MLFB | Description |
| SM332 4AO | HEMA 332-5HD01-0AB0 | 4AO;Resolution:12bits; High-accuracy |
| SM332 8AO | HEMA 332-5HF00-0AB0 | 8AO; Resolution:12bits; High-accuracy |
| BUS INTERFACE MODULE | ||
| Model | MLFB | Description |
| IM153 PROFIBUS DP | HEMA 153-1AA03-0XB0 | Profibus-DP interface module to connect remote I/O modules with Profibus protocol·Eight HEMA 300 expasion modules can be used each IM 153-1 |
| IM153 MODBUS INTERFACE TCP MODULE | HEMA 153-3MB00-0XB0 | ·Can be used to collect/control information of remote I/O modules.·completely support HEMA I¡¢PLC¡¢DCS¡¢IPC and confurgration software with Modebus-DCP protocol |
| IM365 RACK EXPANSION MODULE | HEMA 365-0BA01-0AA0 | Be deloyed with a central controller and a rack expasion |
| HEMA 300 COMMHEMA ICATION MODULE | ||
| Model | MLFB | Description |
| CP 341 OVERVIEW | HEMA 341-1CH02-0AE0 | CP341 commHEMA ication modules commHEMA icate for serial data with high speed and high performance via point-to-point link, easing the commHEMA ication burden of CPU. It can be used for SIMANTIC S7-300 and ET200M and supports ASC¢º and MODBUS master-slave station protocols. |
| PS 307 POWER | ||
| Model | MLFB | Description |
| PS307 POWER,5A | HEMA 307-1EA01-0AA0 | Max.output current:5A;Output voltage:24V DC. |
| PS307 POWER,10A | HEMA 307-1KA01-0AA0 | Max.output current:10A;Output voltage:24V DC;Connect single-phase AC system(input voltage:120/230VAC,50/60Hz) |
| HEMA SPECIAL ACCESSORIES | ||
| Model | MLFB | Description |
| HEMA 300 DIN RAIL | HEMA 390-1AB60-0AA0 | 160mm DIN rail |
| - | HEMA 390-1AD20-0AA0 | 320mm DIN rail |
| - | HEMA 390-1AE80-0AA0 | 482mm DIN rail |
| - | HEMA 390-1AF30-0AA0 | 530mm DIN rail |
| - | HEMA 390-1AJ30-0AA0 | 830mm DIN rail |
| - | HEMA 195-1GA00-0XA0 | 483mm DIN rail(Hot-plugging) |
| - | HEMA 195-1GF30-0XA0 | 530mm DIN rail(Hot-plugging) |
| - | HEMA 195-1GG30-0XA0 | 620mm DIN rail(Hot plugging) |
| 300 PLC Front Connector | HEMA 392-1AJ00-0XA0 | 20-pin front connector |
| - | HEMA 392-1AM00-0XA0 | 40-pin front connector |
| PROFIBUS INTERFACE | HEMA 972-0BA12-0XA0 | 90° Without program interface |
| - | HEMA 972-0BB12-0XA0 | 90° With program interface |
| - | HEMA 972-0BA41-0XA0 | 35° Without program interface |
| - | HEMA 392-0BB41-0XA0 | 35° With program interface |
| PROFIBUS CABLE | HEMA 830-0EH10-0XA0 | HEMA iMAT NET PROFIBUS FC GP HEMA 830-OEH10 * 22AWG (SHIELDED) (UL) E119100 CMG 75ºC or PLTC or AWM 20201 600V FT4 SHEMA RES 09/8745 |
