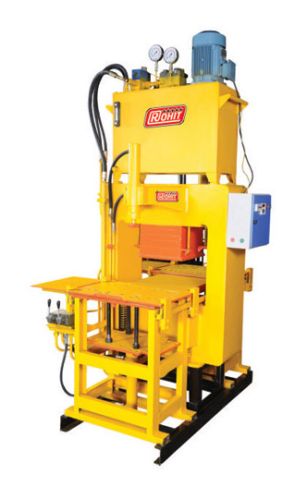

(Model No. P/02) Paver Block Machine, Capacity : 450mm X 450mm

We are manufacturer, exporter and supplier of this product.
Specifications and Features :
Maximum High Pressure Tonnage 70
Manufacturing Capacity :
450mm x 450mm MOSAIC TILES
450mm x 300mm x 150mm KERB STONE
Oil Cooling System Facilitate to Cool down Oil even Press is working.
Trolly System - Mould movesoperates through Trolly.
Auto Stop.
Safe working conditions with electrical and mechanical interlock systems
The Pressing operation is timer controlled with switch operation for both pressing and return strokes ensuring uniform pressure on all sides of tiles.
Power Required : 5 HP.
Each Paver Machine can give production of 1800 to 2000 Nos. Paver in 1 Shift
Each Paver Machine can give production of 2000 to 2200 Nos. Fly-ash Brick in 1 Shift
Oil Tank Capacity : 110 Litres
Machine Size : 150 cm x 123 cm x 270 cm
General Technical Information for Model No P01 - P02 - P03
Piston is Hard chrome
Wiper on Cylinder top
At a time, 4 workers can work.
For removing of Ring, Facility of Hydraulic Stand is available.
It can also manufacture CHEQUERED TILES, ELEVATION WALL TILES, CABLE TILES.
Paver made will have shining smooth finish
Pavers mfgd. from our PAVER PACHINE are fitted in PETROL (FUEL) PUMP, RAILWAY PLATEFORM AIR PORT, SWIMMING POOL, GARDEN RESORT, GENERAL PUBLIC PARKING PLACE, INDUSTRIAL PARKING PLACE RAILWAY CROSSING AND CONTAINER YARD
PAVER PACHINE facilitate Mfg. of paver pc. in two colours : bottom in grey coment material and top pc. (thickness 10mm) as Required selected by customer. This help cost efficiency of paver.
