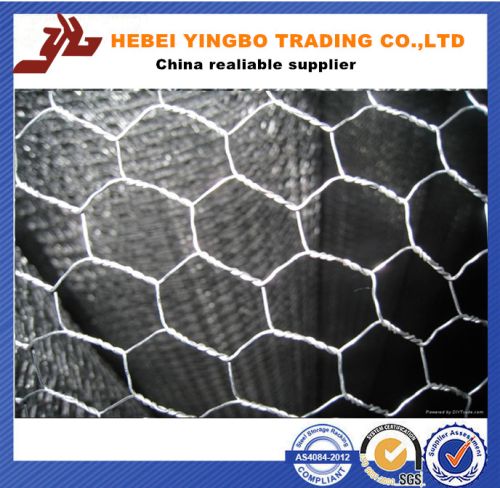

Hexagonal Animal Wire Mesh

Hexagonal wire meshchicken wire mesh
hexagonal wire netting is used for feeding chicken, ducks, gooses, rabbits and the fence of zoo. Also used in machinery protection, fences for road, railway, etc. It can be made into box to hold stones and sand to protect the bank, hillside, bridge and other related civil engineering against the flood.
product description
finishes of hexagonal wire netting can be:
• galvanized after weaving ,galvanized before weaving ,
• pvc coated galvanized
• hot-dipped galvanized
• electro galvanized
galvanized hex. Wire netting in normal twist (in 30m roll,width of 0.5m---2.0m)
mesh
wire gauge (bwg)
inch mm
38" 10mm 27,26,25,24,23,22,21
12" 13mm 25,24,23,22,21,20
58" 16mm 27,26,25,24,23,22
34" 20mm 25,24,23,22,21,20,19
1" 25mm 25,24,23,22,21,20,19,18
1-14" 32mm 22,21,20,19,18
1-12" 40mm 22,21,20,19,18,17
2" 50mm 22,21,20,19,18,17,16,15,14
3" 75mm 21,20,19,18,17,16,15,14
4" 100mm 17,16,15,14
galvanized hex. Wire netting in reverse twist (in 30m roll,width of 0.5m---2.0m)
mesh wire gauge reinforcement
inch mm bwg widths (ft) strand
1" 25mm 22,21,20,18 2' 1
1-14" 32mm 22,21,20,18 3' 2
1-12" 40mm 20,19,18 4' 3
2" 50mm 20,19,18 5' 4
3" 75mm 20,19,18 6' 5
hex. Wire netting in pvc-coated (in 25m roll, width of 0.5m---1.0m)
mesh wire gauge
inch mm
12" 13mm 0.9mm,1.0mm
1" 25mm 1.0mm,1.2mm,1.4mm
1-12" 40mm 1.0mm,1.2mm,1.4mm,1.6mm
2" 50mm 1.0mm,1.2mm,1.4mm,1.6mm
