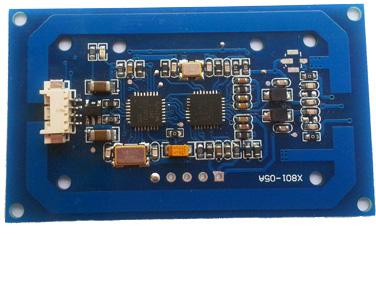

Contact SupplierWe are offering hf 13.56mhz mifare 1k/4k/ultralight rfid module-ttl with inbuilt antenna.
Key features:
compliant with iso14443a standard
readwrite mifare 1k,4k, mifare ultralight, mifare pro
available with rw ntag203,ntag205,ntag213, ntag215 tags
read uid of all iso14443a protocol series cards
easy using and high data transfer
external led & buzzer available
compact in size & comprehensive interface
auto request mode and transferring data by uart automatically
technical parameters:
frequency 13.56mhz
baudrate 9600~115200 bits (configurable, default 9600)
protocol isoiec 14443a standard
card types read and write:
mifare1k4k,mifare ultralight,ntag203,ntag205,ntag213,
ntag215,ntag216
read only uid of all other iso14443a series cards
interface ttl(uart)
power dc 5v
current
