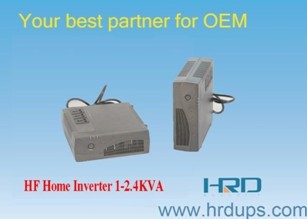

Hf Home Inverter 1-2.4kva, Packaging Type : black

This is a Compact Hf Inverter System for Home and Office Appliances.
such as Light, Fan, Tv,Dvd Computer Ect.
it Has Selectable Wide and Narrow Input Voltage Switch Features Flexibility for Users. It is Perfect to Connect Either Generators or Computer-related Devices.
it’s a Green Substitution for Generators Without Air Pollution.it also Provides Overload and Short Circuit Protection.
specifications
model hf Inverter 1k hf Inverter 1.2k hf Inverter 2k hf Inverter 2.4k
capacity 1000va/600w 1200va/720w 2000va/1200w 2400va/1400w
input
nominal Voltage 220/230/240vac
acceptable Voltage Range 162-290vac(ups Mode)/90-280vac(inv.mode)
frequency Range(batt.mode) 50/60hz(auto Sensing)
output
ac Voltage Range 220v/230v±10%
frequency Range(batt.mode) 50hz ± 1hz
transfer Time 10 Ms Typical
waveform(batt.mode) simulated Sine Wave
battery
battery Voltage 12vdc 24vdc
floating Charge Voltage 13.4vdc±2% 26.8vdc±2%
low Battery Alarm Voltage 10.8vdc±2% 21.6vdc±2%
shutdown Voltage 10.0vdc±2% 20.0vdc±2%
overcharge Protection 15.0vdc±2% 30.0vdc±2%
maximum Charge Current 10a 10a/20a 10a 10a/20a
protection
full Protection overload and Short Circuit Protection
indicators
line Mode green Lighting
battery Mode yellow Lighting
low Battery yellow Flashing Every 2 Seconds
shutdown Mode yellow Flashing Every 5 Seconds
charging Mode At Power On green Flashing Every 2 Seconds
charging Mode At Power Off green Flashing Every 5 Seconds
overload red Flashing for 0.5 Sec.every Second
overcharging red Flashing Every 5 Second
fault red Lighting
alarm
low Battery sounding Every 2 Seconds
overload sounding Every 0.5 Seconds
over Temperature continuously Sounding for 30 Minutes,Then Shutdown
fault continuously Sounding for 30 Minutes,Then Shutdown
physical
dimension (mm) unit 293×231.5×82.5
packing
net Weight(kgs) 2.35 2.55
operating Environment
humidity o -90% Relative Humidity(non-condensing)
operating Temprature 0℃ to 40℃
storage Temperature -15℃ to 50℃
