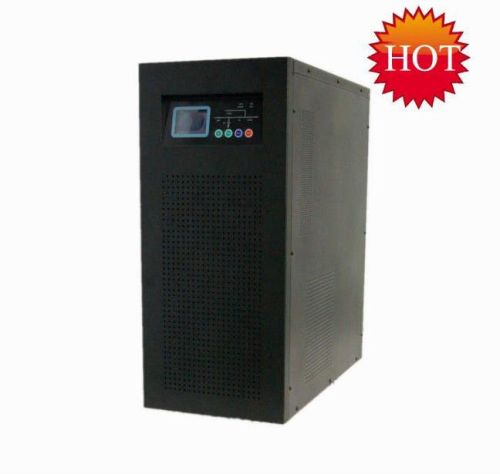

Hf Online UPS Power Castle Series 6-20kva

We are Offering Power Castle Series 6-20kva
introduction
power Castle Pc6k(s)~3c20ks is a Powerful Product Range with High Adaptability and Flexibility. Its Cut-edge Digital Control Technology of Dsp (digital Signal Processor), Can Greatly Improve the Product Performance and System Reliability, and Deliver a Compact Integration with Higher Power Density.
Tailored for Ac Grid Environment
output Power Factor Up to 0.8 – Applicable to the Tendency of Future Load Evolution, and Deliver Higher Payload Capability.
total Power Factor Up to 90% Can Minimize the Power Loss of Ups and Utilization Cost for User. Active Power Factor Correction (pfc) Technology Allows the Input Power Factor Approaching to 1, Dramatically Reducing the Immunity On Utility Grid. Excellent Input Frequency Range Makes Ups Suitable to Different Power Supply Devices, I.e. Generator Set.
Flexible Configuration as Demand
High Scalability: Fully Meet the Customer's Demands. Online Intervention: Safe and Online Intervention Without Any Power Supply Interruption to Load.
emergency Power Off (epo): Ups Can Be Instantly Shut Off in Case of Any Emergency.
parallel Kit: Realize the Parallel Extension and Redundancy Function, Offer More Flexibility and Safety for User's Power Supply Planning.
Compact Design, Lower Noise
with Leading Control Technology and Craftsmanship, this Ups Can Greatly Increase the Power Density and Reduce the Footprint, Therefore Save More Expensive Space in Your Office Environment. Additionally, Its Lower Noise During Operation Can Allow You a More Comfort Working Environment.
Perfect Failure Protection and Alarm Function: Provide Complete Failure Protection and Clear Alarm Notification Function in Case of I/o Over-voltage or Under-voltage, Battery Over-charge or Under-voltage, Overload, and Short Circuit.
High Reliability
Its Cut-edge Digital Control Technology of Dsp (digital Signal Processor) Can Deliver Higher Quality, Performance and Reliability and Can Be Suitable to all Severe Environments. Higher Payload and Overload Capability, Better Load Compatibility, and Suitable for Various Load Type. Powerful Interference Immunity Capability in Compliance with Emc Requirements of Iec61000-4, Deliver Your Device a Clean Electric Environment.
large Lcd Display with Much Information and for Easy Maintenance
lcd Displays Input Output Voltage,Current, Frequency, Battery Condition, Load Percent, Watts ,Va, Working Mode and Necessary Information;
if Any Important Fault, Ups Will Detect It Automatically and Display On the Lcd, Easy Maintenance
Rich Communication and Monitoring Features
provide Rs232 Interface and Communication Cable for Local ;remote Management and Monitoring Function.(snmp), Cmc, or As400 Card (dry Contact)
Technical Specification:
(for Power Grid 120vac/60hz, 4-15kva Available)
model pc06 pc10 pc3110 pc3115 pc3120
capacity 6kva/4.8kw 10kva/8kw 10kva/8kw 15kva/12kw 20kva/16kw
phase 1/1phase, 1wire+n+g 3/1aphase, 3wires+n+g
input Pf above0.99
thdi less Than 2%
input Voltage 110~286vac 285-485vac
input Frequency 50/60+/-5hz
battery
dc Voltage 192vdc
(inbuilt or External) 192vdc (external)
charge Voltage 220vdc
recharging Current 5a(l)/1.5a(s) 5a
battery Type lead-acid Maintenance-free Battery
battery Quantity 16pcs*12vdc
output
output Pf 0.8
output Voltage 220v/230v/240v +/-1%(static)
frequency 46~54hz or 50hz +-0.2hz (line Mode)
50hz +-0.2hz ( Battery Mode)
output Current Crest Factor 3:1(max)
wave Distortion less Than 2%(linear Load), Less Than 4% Non-linear Load
over Load 105%
