Hf RFID Module

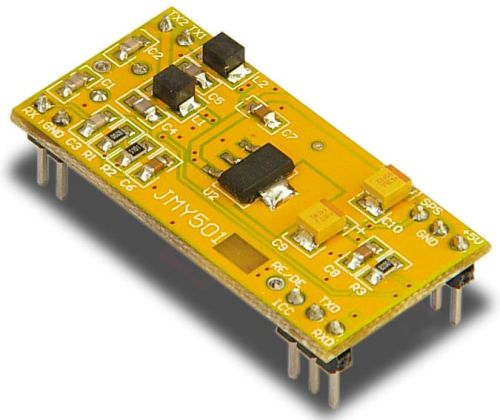

We are offering 13.56mhz,hf rfid module-jmy501,wiht antenna,iso14443a/b,iso15693. Jmy501 series are rfid reader/writer module with uart and iic serial ports. Jmy501 has various functions and supports multi iso/iec standard of contactless card; the cards from different suppliers. The rf protocol is complex. But the designer combined some frequent used command of rf card and then user could operate the cards with full function by sending simple command to the module through iic or uart interface. The impedance between rf module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability. The module and antenna is separate design. 4 wires are linked the antenna and module. Normally the wire should be less than 200mm, or it will affect the module's performance and stability.
qualifications:
model number:jmy501a,jmy501c,jmy501g,jmy501h
pcd: nxp rc500, rc531, rc632, rc400; fm1722
working frequency: 13.56mhz
rf standard: iso14443a, iso14443b, iso15693
operating distance: 100mm(depending on card and antenna design)
anti collision ability: full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
auto detecting card: supported, default off
eeprom: 512bytes
interface: iic & uart (selected by sps pin, recommend to use iic)
communication rate: iic--400kbps, uart--19200bps/115200bps
max.command length: 511 bytes
interface level: 3.3v (ttl level; 5v tolerance)
power supply: dc5v
power consumption: 70ma
dimension: 42mm×21mm×8mm
package: dip32
weight: about 15g
operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
isp: supported
rohs: compliant
model number:
jmy501a:nxp rc500;iso14443a
jmy501c:nxp rc531;iso14443a.iso14443b
jmy501g:nxp rc400;iso15693
jmy501h:nxp rc632;iso14443a,iso14443b,iso15693
