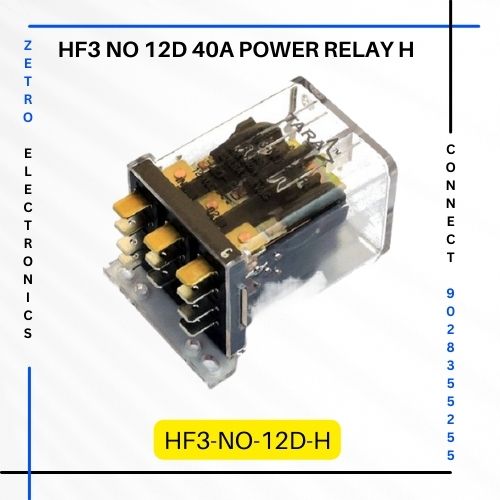

Contact Supplierpower relays : hf3 no 12d 40a h
power relays : hf3 no 24d 40a h
series hf3
contact configuration 3 form a, 3 form b, 3 form c
current rating (no/nc) 40a/40a at 240v ac
electrical life* 50,000 ops
coil voltages various dc and ac voltages
dielectric (kv ac) between contacts 1.5
between coil and contacts 2
typical applications pump / motor controllers, inverter, stabilizers, automation, contactor replacement etc.
special features l high temperature withstanding non plastic base
l rugged design l fully insulated mounting l complete isolation between poles
versions dust protected
termination pcb
mounting style panel / chassis
size (lxbxh) mm 66.3 44.2 43.2
weight (approx. ) gms 155
