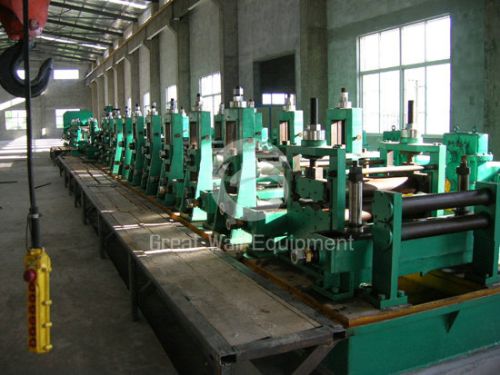

Hg165 High Frequency Welded Pipe Making Machine

We are offering hg165 high frequency welded pipe making machine. The hg165 high frequency welded pipe equipment is the main equipment of the high frequency welded pipe production line. It satisfies different production of pipe sizes and shapes demands according to the diameter and the wall thickness of the pipe.
this equipment can produce circular, square, rectangular and special pipes using low carbon and alloy steel materials.
specific process flow:
steel strips are first fed into the machine then are shaped into pipe blanks by rollers.
Then, under skin and proximity effects of high frequency electric current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe.
the heated up pipe profile fringe is quickly moved to the welding temperature and finished welding under the squeeze roller's pressure.
after cooling, sizing and broad straightening, the steel pipe of needed specification is achieved.
our product, the ffx forming unit, cage forming unit can produce x80 and j55 api petroleum casing pipes and petroleum and gas pipes, which conform to the standard of api-5l, api-5ct.
this unit can also produce special pipes for air cooling condenser used by electric power plants or steel mills.
parameters:
diameter: dia60-dia165mm and correspondent size square and rectangular pipe.
Wall thickness: 2-6mm
steel strip material:mild steel & low alloy steel, etc.
Welding speed: 20-50 m/min
main motor power: 250kw
high frequency equipments: 400kw or 600kw
equipment composition:
the hg165 high frequency welded pipe equipment consists of an uncoiling machine, unbender unit, active flattening machine, cutter & butt welder, storing loop, forming and sizing units, computer flying saw, end milling machine, hydrostatic testing machine, charge table, inspected equipment, sack & bale machine, high frequency dc, product line electric appliance.
