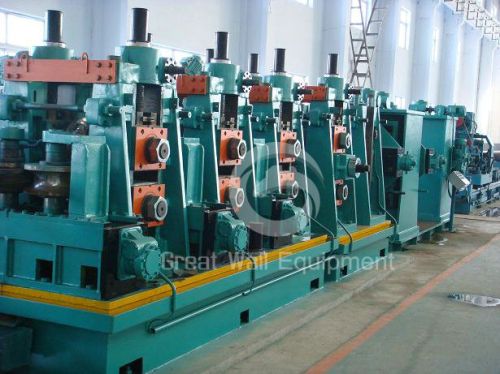

Hg219 High Frequency Welded Pipe Making Machine

we are offering hg219 high frequency welded pipe making machine. the hg219 high frequency welded pipe equipment is the main equipment in the high frequency welded pipe production line. it can be divided into different types according to the diameter and the wall thickness of the pipe. the mill can produce circular pipe, square and rectangular pipe and special pipe using low carbon steel & alloy steel.
the specific process flow is:
steel strips are first fed into the machine then are shaped into pipe blanks by rollers.
then, under skin and proximity effects of high frequency electric current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe.
the heated up pipe profile fringe is quickly moved to the welding temperature and finished welding under the squeeze roller's pressure.
after cooling, sizing and broad straightening, the steel pipe of needed specification is achieved.
our products such as roll forming unit, ffx forming unit, cage forming unit can produce x80 and j55 api petroleum casing pipes and petroleum and gas pipes, which conform to the standard of api-5l, api-5ct.
this unit can also produce special pipes for air cooling condenser used by electric power plants or steel mills.
feed steel strip of a certain specification into the machine and then use forming roll to crimp the steel strip into pipe-blank. then under skin effect and proximity effect of high frequency electric current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe and heat up the pipe profile fringe quickly to the welding temperature and finish welding under the pressure of the squeeze roller. after cooling, sizing and broad straightening, you can get the steel pipe of needed specification. our products such as roll forming unit, ffx forming unit, cage forming unit can produce x80 and j55 api petroleum casing pipe and petroleum and gas pipe, which conform to the standard of api-api-5ct. this unit can also produce special pipes for air cooling condenser used by electric power plant or steel mill.
parameters:
diameter: dia108-219mm and correspondent size square and rectangular pipe
wall thickness 3-8mm
steel strip material:mild steel & low alloy steel, etc.
welding speed: 15-45m/min
main motor power: 400kw
high frequency equipments: 600kw or 800kw
equipment composition:
the hg219 high frequency pipe welding equipment consists of an uncoiling machine, unbender unit, active flattening machine, cutter & butt welder, storing loop, forming and sizing unit, computer flying saw, end milling machine, hydrostatic testing machine, charge table, inspected equipment, sack & bale machine, high frequency dc, product line electric appliance.
