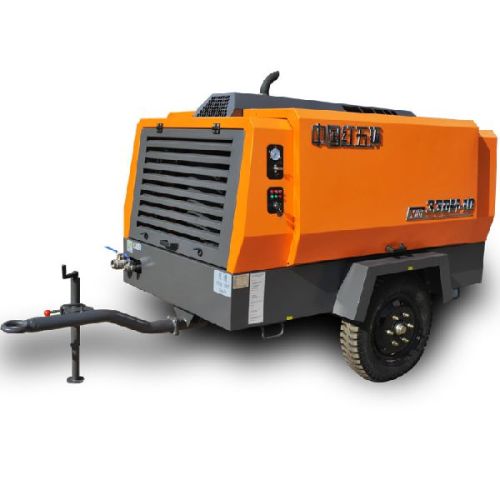

HG300M-10 Medium 10bar Diesel Screw Air Compressor

Medim size, light weight of hg300m-10 medium 10bar diesel screw air compressors let the machines freely get in and out of narrow working conditions, reducing transportation costs.medium 10bar diesel screw air compressors have the characteristics of energy saving, high efficiency, safety and reliability, long service life and low cost of use.  hg medium diesel compressor series technical parameters                                                             modelparameters hg300m-10 hg330l-8 hg400m-13 hg425m-10 hg450l-8 air delivery m3/min 8.5 10 10 11 13 discharge pressure mpa 1 0.8 1.3 1 0.8 compressed stage   single single single single single air tank volume l 100 100 100 100 100 lubricant oil l 48 48 54 54 54 dieslel manufacture   yuchai yuchai kangchai/yuchai/weichai kangchai/yuchai/weichai kangchai/yuchai/weichai cylinders   4 4 6/6/4 6/6/4 6/6/4 rated power kw 84 84 110/93/100 110/93/100 110/93/100 rated rotate speed rpm 2400 2400 2400/2300/2200 2400/2300/2200 2400/2300/2200 idle rotate speed rpm 1400 1400 1400 1400 1400 diesel lubricant l 9~12 9~12 12~18 12~18 12~18 coolant volume l 20~24 20~24 25~28 25~28 25~28 fuel tank volume l 120~150 120~150 120~160 120~160 120~160 interface size   1-r1'' 1-r1.1/2'' drive mode.
