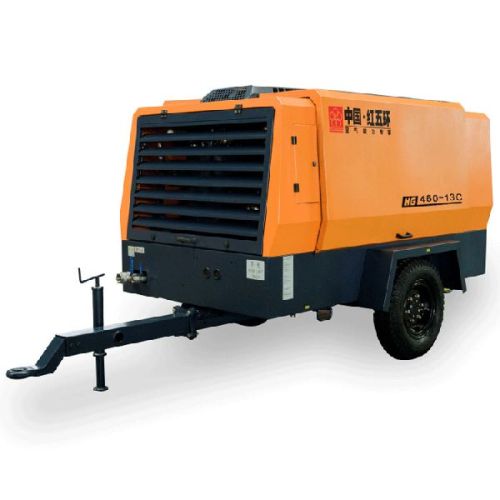

HG460-13C 13bar Diesel Screw Air Compressor

Low pressure screw air compressors,such as hg460-13c 13bar diesel screw air compressors, are specially designed for textile, printing and dyeing, chemical, glass, water treatment users, providing efficient, energy saving, reliable products. It is our relentless pursuit for user plant operating efficiency and lower energy costs using diesel air screw compressors.  hg medium and low pressure diesel compressor series technical parameters                                    modelparameters hg600-8c hg460-13c hg550-13c hg500-13c hg550-13c air delivery m3/min 17 12 15 13 15 discharge pressure mpa 0.8 1.3 1.3 1.3 1.3 compressed stage   single single single single single air tank volume l 130 120 130 120 130 lubricant oil l 65 60 65 60 65 diesel engine   dongfeng cummins cylinders   6 6 6 6 6 rated power kw 132 132 132 132 132 rated rotate speed rpm 2200 2200 2200 2200 2200 idle rotate speed rpm 1400 1400 1400 1400 1400 diesel lubricant l 18 18 18 18 18 coolant volume l 40 40 40 45 45 fuel tank volume l 335 335 335 210 210 interface size 1-g2''.1-g1'' drive mode   coupling coupling coupling coupling coupling length mm 4200 4200 4200 3400 3400 width mm 1980 1980 1980 1690 1690 height mm 2210 2210 2210 2200 2200 weight kg 2700 2700 2700 3200 3200 walking way   two-wheel walking four-wheel.
