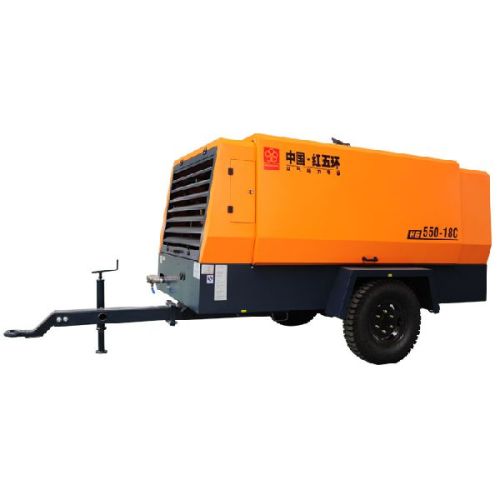

HG550-18C 18bar Portable Diesel Air Compressor

The launch of new-type HG550-18C 18bar portable diesel air compressors with large displacement and high wind pressure, accurately and perfectly exert the best critical point of the impactors, therefore, customers are no longer worried about unstable flow and insufficient pressure in use.  HG high pressure diesel compressor series Technical Parameters                                                     ModelParameters HG750-8C HG650-13C HG550-16C HG650-16C HG750-16C HG550-18C HG700-18C Air delivery m3/min 21 17 15 17 21 15 18 Discharge pressure MPa 0.8 1.3 1.6 1.6 1.6 1.8 1.8 Compressed stage Single Single Single Single Single Single Single Air tank L 130 130 130 130 130 130 130 Lubricant oil L 80 80 80 80 80 80 80 Diesel DongfengCummins WEICHAI WEICHAI DongfengCummins DongfengCummins DongfengCummins DongfengCummins Cylinders 6 6 6 6 6 6 6 Rated power KW 179 160 160 194 194 179 194 Rated speed rpm 2200 2200 2200 2200 1900 2200 1900 Idle speed rpm 1400 1400 1400 1400 1400 1400 1400 Diesel Lubricant L 24 Coolant volume L 60 Fuel tank volume L 350 Interface size 1-G2'' 1-G1'' Drive mode Coupling Length mm 4600 Width mm 1980 Height mm 2210 Weight kg 3280 Walking way Two-wheel walking Certificates.
