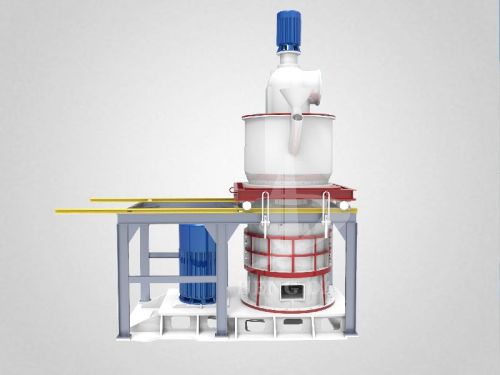

HGM200 Ultrafine Powder Grinding Mill Machine, Brand Name : Hengda

Hgm200 ultrafine powder grinding mill specification:
ring diameter: 1400 mm
layer: 4 piece
roller qty: 52piece
input size: 20 mm
final product size: 3-35 um
main unit power: 200 kw
classifier power: 55 kw
screw feeder power: 3 kw
blower power: 132kw
air comprassor power: 15 kw
blower volum: 28000-35000 m3h
blower pressure: 7800-8500 pa
main unit speed: 180 rmin
classifier speed: 500-2900 rmin
capacity; 1800-12000 kgh
main unit weight: 25ton
pulse dust filter area: 358 m2
hgm technical features:
1. Reliable operation of the grinding chamber: this hgm series grinder does not have antifriction bearing and bolt inside of the grinding chamber, so problem caused by the bearing and other sealing element will not occur and the problem of machine failure caused by the loose bolt can be avoided.
2. Long time used of the quick-wear part: all the quick-wear parts adopt high-quality wear-resistant materials.
3. Convenient maintenance: hgm series ultrafine main engine has shifting unit and does not need hoist the grader, the maintenance is convenient and efficient.
4. Double support rigid structure: the grinding roller and grinding ring will not move.
5. All-around feeding and high efficiency.
6. It has the features of small vibration, convenient maintenance, highly reliable quick-wear part, low operation cost.
