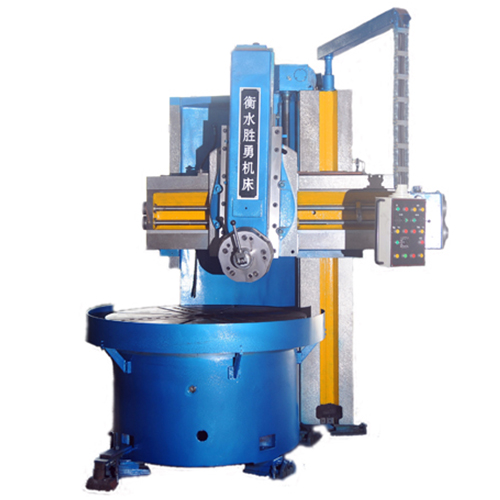

High Accuracy Single Column Vertical Turning Machine

High accuracy vertical turning machine VTL is mainly used for processing of large-diameter flanges, various valves and pipelines, pressure vessels. CNC Vertical Turning Machine is widely applied to many industries,such as rubber machinery,mine machinery textile machinery,chemical machinery ,automobile manufacturing and so on.
Feature of CNC vertical turning machine VTL machine
1. It adopts AC servo motor, import drive and bell lead screw to change general type to CNC one.
2. Main transmission adopts AC servo motor through 16 steps spindle speed mechanism to perform speed range of table.
3.Single column vertical turning lathe machines is suitable for rough and and fine machining of ferrous metal, nonferrous metal and part nonmetal with high speed steel and hard alloy tool
CNC Vertical turning lathe machines VTL machine model:
CK5112CK5116CK5118CK5120CK5123CK5125CK5126
CK5225CK5232CK5240CK5250CK5263 CK5235
Technical specification of Single column vertical turning machine CK5116
1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 915 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutt
