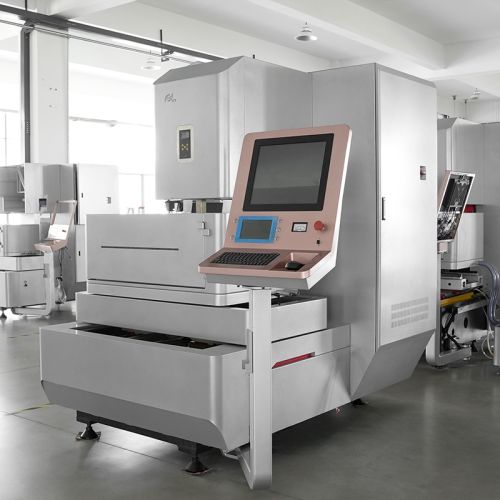

Metal High Accuracy Wire Cut EDM Machine, Rated Power : 3KVA

₹ 16.20 Lakh / piece

MaterialMetal
Production Capacity1000 Sets/Year
Model No.HY420SY-PL,HY-420SY-PL
Rated Power3KVA
Business TypeService Provider
Preferred Buyer Location All over the world

Company Information

Fujian Skystone Intelligent Equipment Co. Ltd.

Member Since 1 Year
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Service Details
Company Details

MaterialMetal
Production Capacity1000 Sets/Year
Multiple Cutting Accuracy≤±3um,0.003mm
Machine Stroke±12°,420*320*250
Cutting Efficiency150-300mm2/Min
Processing PrecisionRa≤0.5um
Numerical ControlCNC/MNC
Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools, EDM Machine
Model No.HY420SY-PL,HY-420SY-PL
UsesMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Rated Power3KVA
Movement MethodCNC

Product Introduction
Our precision EDM machine uses HT300 cast iron through precision casting technology, to ensure the high stability and long-term accuracy of the machine tool bed. High standard assembly reguirements to ensure the machine X/Y axis accuracy within 3 um. The equipment winding system adopts enhance operational smoothness and cutting stability which is crucial to improving the mechanical performance.

The scientific integration of the independently developed high-frequency power supply and intelligent modular design and circuit system not only marks the company's independent control of core technology,but also demonstrates its profound foundation in system integration and optimization.This design enables the machine tool to adapt to the processing needs of large-thickness materials while maintaining high efficiency.

This equipment is particularly outstanding in its balance between cutting efficiency and smoothness. The first cutting speed is over 15000mm²/h,and under different processing modes, even if the speed is adjusted, it can still keep excellent finish performance, with a minimum of Ra 0.5um, which is also leading in the industry.
Product Features

1) Environmental Protection, full protection machine.

2) Adopting environment-friendly metal double-door type water retaining cover with good sealing and no water leakage.

3) Overall environmental protection design, sheet metal molybdenum wire path design, effective recovery of cutting fluid, and environmental protection.

4) Variable-frequency endless .variable-speed wire-walking system.

5) The silo adopts the technology of stepless speed change, according to the machine tool to operate the silks and the workpieces of different thickness, the silks speed can be selected automatically and flexibly.

6) Select Panasonic, Mitsubishi Servo Motor, further improve the machining accuracy of machine.

7) Advanced non-damping protection, no reverse gap compensation.

Product Structure & Advantages

1) High roughness: the accuracy is as low as 5μm, far ahead of its peers;

2) High efficiency: the efficiency can reach 15000mm2/h;

3) Easy operation: multiple cutting accuracy ≤± 3μm; repeat positioning accuracy ≤± 2μm;

4) Global service: we have a service team of 45 professional engineers which can respond to customer needs in 7/24.

After-Sale Service

1) Standard Warranty: 12 months for Whole machine except for wear parts;

2) Extended Warranty: Optional coverage up to 36 months;

3) Global Support: 24/7 technical assistance and spare parts supply;

4) Training: On-site or remote operation/maintenance training.
