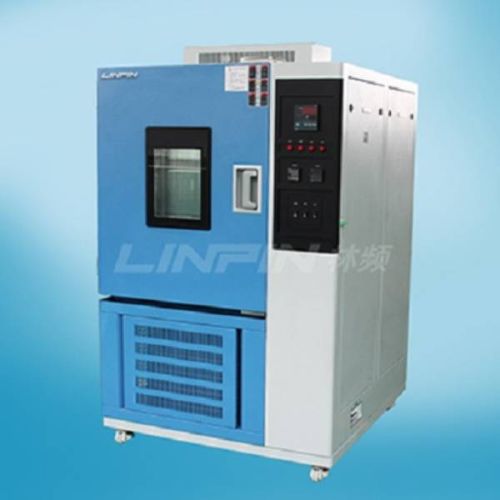

High and Low Temperature Test Chamber

₹ 9.05 Lakh - ₹ 46.16 Lakh / Piece

Size450×450×500
Supply TypeManufacturer, Supplier
Preferred Buyer Location China only

Model Studio Size ....

Product Details

Model	Studio Size (DWH)mm	Dimension（DWH）mm
LRHS-101B-L	450×450×500	1160×1000×1610
LRHS-225B-L	500×600×750	1210×1150×1870
LRHS-504B-L	700×800×900	1260×1340×2070
LRHS-800B-L	800×1000×1000	1370×1550×2170
LRHS-1000B-L	1000×1000×1000	1560×1550×2170

temperature range	A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃ D:-70℃～150℃
Temperature uniformity	≤2℃(at no load)
Temperature fluctuation	±0.5℃(at no load)
heating rate	1.0～3.0℃/min
cooling rate	0.7～1.0℃/min
Time Setting Range	1～9999H
test hole	Mounted on the left side of the machine for use with external test power or signal cables
viewing window	210 x 275mm or 395 x 395mm (effective field of view)
Outer case material	High quality A3 steel plate electrostatic spraying
Inner box material	Imported high-grade stainless steel SUS304
Insulation material	Rigid polyurethane foam + fiberglass
Temperature Controller	Korea Sangwon ST590 Meter
temperature sensor	PT100 platinum resistance temperature measurement body
Cooling method	Single or double cascade refrigeration
Compressor	Taikang, France
standard configuration		Sample racks, 2 tiers, with condensate catch pan and drain out of the box
security protection		Compressor overpressure overload, fan motor overheating, the overall equipment under phase / reverse phase Over-temperature, overall equipment timing, leakage protection, overload and short-circuit protection
Supply Voltage		AC380V±10％ 50Hz
Power		（A）3.5kW/4.0kW/6.0kW/8.0kW/9.0kW （B）4.0kW/4.5kW/7.5kW/9.0kW/10.5kW （C）4.5kW/6.5kW/9.0kW/13.0kW/13.0kW
operating environment		5℃～＋28℃ ≤85% RH
Note: 1、the above data are in the use of ambient temperature of 25 ℃ and well ventilated conditions measured 2、Can be customized according to the specific requirements of the user non-standard high and low temperature test chamber etc 3、This technical information, subject to change without notice
