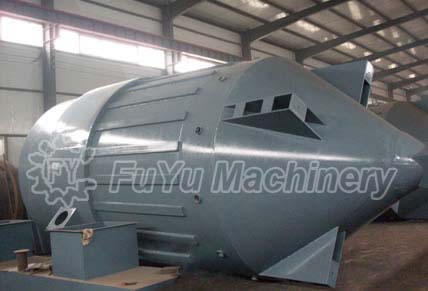

High Capacity Vertical Dryer, Brand Name : FuYu

We are offering high capacity vertical dryer.
Working principle
the molded balls which contain much moisture are transmitted to the top by conveyor, and then they are evenly distributed on the top cross-section by distribution device. Briquettes fall down slowly by gravity, exchange heat with strong wind at the same time. The moisture which is evaporated from briquette is taken away randomly by the strong wind. The briquettes achieve intensive drying after two hours evaporation process.
Application
material is pressed into shapes by briquette press machine; the moisture is usually at 12%-14%. After dried, the moisture can reduce to 2-4%, also can satisfy the request of hardness, storage and transportation.
Economic features
the amount of investment reduced by 12; area is 15-13; energy consumption and operating costs significantly reduced.
Advantages
this product matching process is good, easily in connection with other equipments and automation in production line. Equipments are easy for operation and simple for maintenance. Drying furnace body has no mechanical moving parts, no maintenance routine. It is characterized by continuous operation, high efficiency, large output.
Technical parameters
model: lh-2218
original moisture: 25%
final moisture: 2%
standard coal consumption: 10-13kgt
capacity: 14-16th
electricity consumption: 1.5-2.0kwt
weight: 28t
