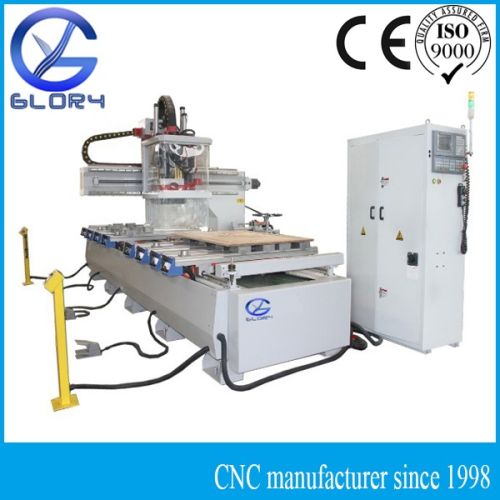

High Class One Arm CNC Router

We are offering high class one arm cnc router.
key features:
circular atc with 8 tools position
gang drill, 11 bits with 1 saw blade
syntec operating system
yaskawa servo motor
9kw hsd spindle
automatic oil-injection
ideal for:
furniture manufacturing
advertisement
shop fitting
woodworking
density board
acrylic
soft metals
composite and much more
processing effect:
milling, cutting, engraving, drilling, relief, etc.
specification gy-ms1335adh
working area
(x axis) 1300mm
working area
(y axis) 3500mm
clearance
(z axis) 350mm
table size 1300mm*3700mm
resolution 0.001-0.003mm
spindle 9kw hsd
spindle speed adjustable 0-24,000 rpm
tool change rotary tool-change with 8 tool positions
gang drill 11 bits 1saw blade
drive system
(x & y axes) helical rack & pinion
linear guide 30mm hiwin
drive system
(z axis) germany ball screw
lubrication automatic oil-injection system
drive motors 4 pieces 850w yaskawa servo motors
driver delta 11kw
command g code
cutter diameter φ3.175-φ16mm
maximum travel speed 50mmin
controller syntec
power requirements 3-phase 380v50hz
weight 2200kg
gy-ms1335adh comes standard with all the features you will need for high production cnc routing. Both the steel table frame and gantry are manufactured to the highest standard. All 3 axes are powered by fast, reliable and quiet yaskawa ac servo motors which provide a fantastic mix of torque and power. The x and y axes run on hiwin guide rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance-free reliability. Included on this type machines are helical rack and pinion drives to guarantee high-accuracy.
