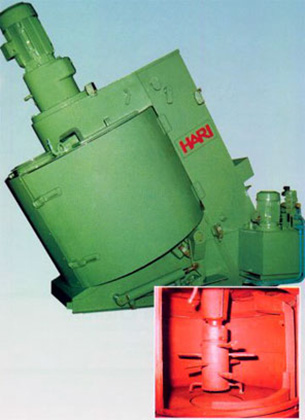

Operation is based on counter current principle. The ecentrically placed high energy agitator rotates in counter clockwise direction within the clockwise rotating pan.

Mode of Operation & Working Principle - Operation is based on counter current principle. The ecentrically placed high energy agitator rotates in counter clockwise direction within the clockwise rotating pan. In addition, the inclined arrangement of the mixing pan tumbles the material & ensures vertical mixing as well. A material deflector plate prevents material sticking to pan wall & deflects it into high speed rotor. Further it also accelerates the dicharge of material at the end of mixing cycle.


SALIENT FEATURES

• Hydraulic actuated central discharge system
• Friction wheel drive for the mixing pan results in low noise and reduced maintenance
• The rotating mixing pan is enclosed in static case resulting dust free operation.
• For low speed application agitator is directly driven by geared motor whereas for high speed application it is driven by 'V' belt drive.
• A large hinged door provided on the rotating pan gives easy access to inside of pan.
• Perfect alignment of mixing pan at high loads/speeds by specially designed slewing ring which guide the pan both in horizontal as well as vertical directtio
• All greasing points are connected to a Auto centralised lubrication system thus ensuring high reliability operation.
