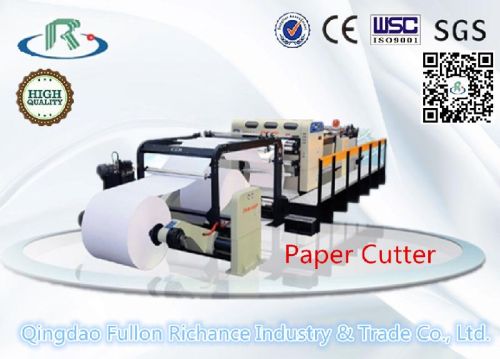

Electric High Efficient CHM-A4A Paper Packing Machine, Power : 380V

High Efficient CHM-A4AB A4 Paper Packing Machine (Cutting and Stacking)
_________________________________________________
§ Preface §
_________________________________________________
What the machine Can Do
It is a professional carton box making machine,and also is called Platen Die Cutting and Creasing Machine as usual.With this machine,carton box making works would be more easy and efficient.
So if you want a carton box making machine,look for Qingdao Fullon Richance Industry.
Main configuration
1.Capability
1)The packaging film can be wrapped in both ordinary and advanced packaging films.
2)The most advanced glue sprayer, with automatic spray adhesive function.
3)It can significantly reduce packaging cost, and improve the packaging quality.
4)The packaging effect can meet the international standard.
5)Packaging film has electrostatic function.
2.Easily operate
1)Equipped with touch display screen to achieve man-machine interface.
2)Use multi-function digital display frequency stepless speed regulation, PLC programming control technology.
3)The paper introduces the automatic transversal Traverse feed function and technology with web.
_________________________________________________
§ Equipment Parameters §
_________________________________________________
Type CHM-A4A CHM-A4B
Paper Width Gross width:310mm;net width:297mm
Ream Packing high Max 55mm;Min 45mm
Packing Roll Diameter Max1200mm;Min 600mm
Packing Roll width Max600mm;Min 430mm
Packing Sheets Weight 80-120gm2
Packing Sheets Grade high-grade copy paper, high-grade office paper, high-grade offset paper etc.
Design Speed Max 50 reamsmin Max 50 reamsmin
Operation Speed Max 30 reamsmin Max 35 reamsmin
Packing Condition no speed variations, no breaks, cut all the paper at onetime and qualified packing paper.
Driving AC frequency stepless gear
Main Power Supply 3*380v50HZ(or as required)
Voltage 220V AC24V DC(or as required)
Power 20.25KW 18KW
Compressing Air Consumption 250NLmin 250NLmin
