High Force Series Vibration Test System

Listing ID #6086026

  • Power Efficiency> 90%
  • Input sensitivity4Vrms, compatible with all standard controllers
  • Input Impedance10 Kohm
  • Stray magnetic field (150mm above table)<1mT
  • Supply Type Manufacturer, Exporter
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 13 Years
  • Nature of Business Retailer
  • GST No. 05AAACT7621B1ZU

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Input Impedance 10 Kohm
  • Input sensitivity 4Vrms, compatible with all standard controllers
  • Power Efficiency > 90%
  • Stray magnetic field (150mm above table) <1mT
  • Payload Capacity 600 Kg
  • Signal to noise ratio > 70dB

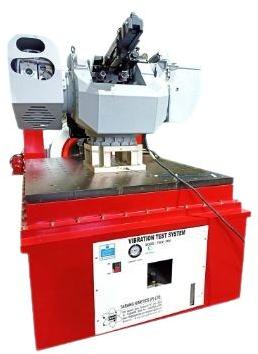

Electro-Dynamic Shaker
Our system consists of Drive Coil (Armature) positioned in direct current magnetic field excited by alternating current signal generated by Digital Power Amplifier. This generates a force making the drive coil to move as per the magnitude and frequency of the signal. This vibratory force is applied on the objects/specimens mounted on Shaker platform. The armature assembly utilize modern armature suspension systems which is Rolling strut type featuring low transverse motion.
Vibration test system is a versatile test equipment to carry out vibration tests in accordance with various National & International standards e.g. IS, MIL, EN, ISO, IEC, DEF & ASTM Standards.
Power Amplifier
The Digital Power Amplifier is a MOSFET/IGBT based Modular Type Class-D Switching interlocked with the shaker. Digital Amplifier Controller is a microcontroller, colour touch screen based userfriendly interface equipped with self-diagnostic, calibration and protection features which gets the input signal from vibration controller and controls the alternating current amplitude and frequency accordingly.
The remote operation module can be optionally used to remotely operate the complete Vibration Test System.
Advantages for you
Customizable Reliable Solutions:Key features

  • Wide Dynamic Range
  • Low mass, High performance armature
  • Various safety interlocks for safe operation
  • Capable to perform tests in accordance with various standards eg. IS, MIL, DIN, ISO, EN, IEC, DEF, Js55555 & ASTM etc.
  • Long stroke with displacement upto 75mm


Efficient performance:Key features

  • Robust rolling strut suspension
  • Efficiency is greater than 90%
  • High Signal to noise ratio
  • Auto Centring of Armature


User Friendly:Key features

  • Touch Screen based Digital Amplifier Controller
  • Trunion mounted shaker for easy integration with slip table
  • Modular in design for easy and quick operation
  • Air spring body isolation


Universal Compatibility:Key features

  • Compatible with all worldwide controllers
  • Option for Chamber integration


Vibration Test System Standard Models

Model TEDV-4000 TEDV-5000 TEDV-6000 TEDV-7000
Performance Parameters
Sine Force (Peak) 4000Kgf 5000Kgf 6000Kgf 7000Kgf
Random Force (rms) 4000Kgf 5000Kgf 6000Kgf 7000Kgf
Shock Force 8000Kgf 10000Kgf 12000Kgf 14000Kgf
Max Acceleration Bare Table (Sine) 80'g' 100'g' 100'g' 100'g'
System Velocity (Sine) 1.8/2.4 m /s 1.8m/s 1.8m/s 1.8m/s
Max Displacement (peak to peak) 51/75mm 51/63mm 51/63mm 51/63mm
Axial Resonance (+5%) 2.1KHz 2.1KHz 2.1KHz 2.0KHz
Useful Frequency Range DC to 2.4KHz DC to 2.3KHz DC to 2.3KHz DC to 2.2KHz
Shaker Parameters
Mass of Armature 48Kg 48Kg 58Kg 68Kg
Size of Armature (dia) 440 mm 440 mm 440 mm 480 mm
Insert Pattern Center – 1
200pcd – 8
400pcd – 8
Center – 1
200pcd – 8
400pcd – 8
Center – 1
200pcd – 8
400pcd – 8
Center – 1
200pcd – 8
400pcd – 8
Payload Capacity 600 Kg 600 Kg 600 Kg 600 Kg
Stray magnetic field (150mm above table) <1mT <1mT <1mT <1mT
Cooling blower 2000 cfm 3000 cfm 3000 cfm 3500 cfm
Shaker Mass 5400 kg 5600 kg 5800 kg 6000 kg
Dimensions (mm) 1600*980*1240 1600*980*1240 1600*980*1240 1700*1080*1340
Utilities required 4-6 bar compressed air, earthing
Power Amplifier Characteristics
Signal to noise ratio > 70dB > 70dB > 70dB > 70dB
Power efficiency > 90% > 90% > 90% > 90%
Input Impedance 10 Kohm 10 Kohm 10 Kohm 10 Kohm
Input sensitivity 4Vrms, compatible with all standard controllers
Power requirement (3 Phase) 52KVA 60KVA 68KVA 74KVA
Protection interlocks Over Current, Over Voltage, Under Voltage, Module Failure, Cooling Interlock, Over Temperature Amplifier & Shaker, Current Limit, loss of input phase etc
Vibration Controller
Standard Software Swept Sine, Random, Classical Shock, Resonance Search Track & Dwell
Optional Software Random on Random, Sine on Random, Shock Response Spectrum, Transient Time history etc
No Of Channels 8 Channels upgradable upto 64 channels








Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry
