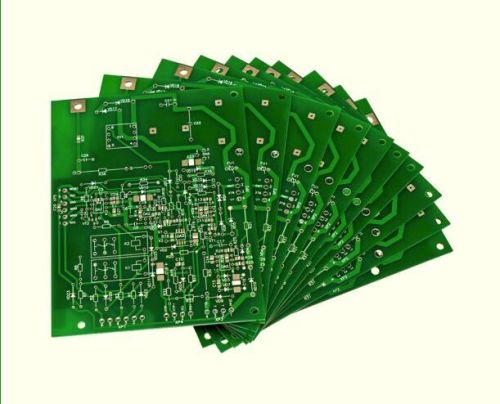

High Frequency Circuit Boards

High frequency circuit boards Topscom is a professional printed circuit boards manufacturer,include: Pcb Circuit Boards Manufacturing,Multilayer Rigid Pcb,High Frequency Pcb,Aluminum Pcb,Led Pcb,Thick Copper Pcb,High-TG Pcb,Halogen-Free Pcb,HDI Pcb,Flexible Pcb,Rigid-Flexible Pcb,pcb assembly,oem manufacturing,electronic contract manufacturing.High frequency PCB with Rogers materialThe increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.Depending on various parameters, HF signals are reflected on circuit board, meaning that the impedance (dynamic resistance) varies with respect to the sending component. To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest level of process control.Critical for the impedances in high frequency circuit boards are principally the conductor trace geometry, the layer buildup, and the dielectric constant of the materials used.Multi-CB provides you with know-how, all popular materials and qualified manufacturing processes - reliably even for complex requirements.Rogers 4350B: Quote & OrderSend an HF enquiryDesign of HF circuit boardsMulti CB supports you starting immediately in the design phase.
