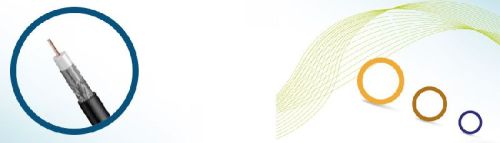

HIGH FREQUENCY CO-AXIAL CABLES

Get Latest Price

FPEFoam Polyethylene
SPCSilver Plated Copper Braid
PACBare Copper
SCCSSilver Plated Copper Covered Steel
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

SHILPI WORLDWIDE DMCC

Dubai

View Number

Member Since 6 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

PACBare Copper
SCCSSilver Plated Copper Covered Steel
PVCPolyvinylchloride
SPCSilver Plated Copper Braid
AL/PolyAluminum / Polyester Foil
FPEFoam Polyethylene
BCCSBare Copper Covered Steel
TPCTin Plated Copper
TPCTin Plated Copper Braid
PEPolyethylene

RG SERIES MIL C 17 TYPE HIGH FREQUENCY CO-AXIAL CABLES

RG Wire & Cable Limited provides a comprehensive and complete range of RG Series coaxial cables, in accordance with MiL C 17 specifications. The details of some of the key products are included below; however other products are available, also in non standard designs and colors upon request.

Item

Inner Conductor

Insulating

External Conductor

Jacket

Mat
erial

Structure

Mat
erial

Outer Diameter

Ma
terial

Composition

Braid Outside
/Diameter
(Max.)

Internal
Braid
Configuration

External
Braided
Configuration

Ma
terial

Outer Diameter

RG5B/U

SPC

1/1.29

4.60±0.10

SP
0043

0.16

16*9

5.9±10

0.16

16*9

8.7±10

6.73

PVC

8.43±0.10

RG6A/U

PAC

*1/0.724

4.70±0.10

SPC

0.16

16*9

5.9±10

0.16

16*9

8.7±10

6.71

PVC

8.43±0.10

RG8A/U

PAC

7/0.724

7.24±0.25

PAC

0.18

24*8

6.5±10

8.64

PVC

10.3±0.25

RG9B/U

SPC

7/0.724

7.11±0.12

SPC

0.16

24*6

16.6±10

0.16

24*7

15.4±10

9.02

PVC

10.7±0.25

RG11A/U

TPC

7/0.404

7.24±0.17

PAC

0.18

24*8

6.5±10

8.64

PVC

10.3±0.17

RG13A/U

TPC

7/0.404

7.11±0.25

PAC

0.16

24*9

6.5±10

0.16

24*8

10.3±10

9.02

PVC

10.7±0.25

RG14A/U

PAC

1/2.59

9.40±0.33

PAC

0.18

24*10

5.4±10

0.18

24*8

10.6±10

11.8

PVC

13.8±0.33

RG17A/U

PAC

1/4.78

17.3±0.38

PAC

0.26

24*14

3.1±10

19.3

PVC

22.1±0.38

RG34B/U

PAC

7/0.632

11.7±0.25

PAC

0.18

24*10

9±10

13.6

PVC

16.0±0.25

RG55B/U

SPC

1/0.813

2.95±0.12

TPC

0.127

16*7

9±10

0.12

16*7

15±10

4.47

5.25max.

RG58C/U

TPC

19/0.18

2.95±0.10

TPC

0.127

16*7

10.3±10

3.81

PVC

4.95±0.10

RG59B/U

CCS

1/0.584

3.71±0.10

PAC

0.16

16*7

8.2±10

4.85

PVC

6.15±0.10

RG62A/U

CCS

1/0.643

3.71±0.12

PAC

0.16

16*7

8.2±10

4.85

PVC

6.15±0.17

RG63B/U

CCS

1/0.643

7.24±0.25

PAC

0.18

24*8

6.5±10

8.64

PVC

10.2±0.25

RG71B/U

CCS

1/0.643

3.71±0.12

TPC

0.127

16*7

8.2±10

0.12

16*9

10.6±10

5.28

6.35max.

RG122/U

TPC

27/0.127

2.44±0.07

TPC

0.127

16*6

12.9±10

3.2

PVC

4.05±0.12

RG133A/U

PAC

1/0.645

7.24±0.17

PAC

0.18

24*8

6.5±10

8.64

PVC

10.3±0.25

RG174

CCS

7/0.16

1.52±0.10

TPC

0.12

16*4

12±10

1.98

PVC

2.79±0.10

RG212/U

CCSS

1/1.41

4.70±0.10

SPC

0.16

16*9

5.9±10

0.16

16*9

8.7±10

6.73

PVC

8.43±0.10

RG213/U

PAC

7/0.752

7.24±0.17

PAC

0.18

24*8

6.5±10

8.64

PVC

10.3±0.17

RG214/U

TPC

7/0.752

7.24±0.17

SPC

0.16

24*6

16.6±10

0.16

24*7

15.4±10

9.14

PVC

10.8±0.17

RG215/U

TPC

7/0.752

7.24±0.17

PAC

0.18

24*8

6.5±10

8.64

PVC

10.3±0.17

RG217/U

PAC

1/2.69

9.40±0.25

PAC

0.18

24*10

5.4±10

0.18

24*8

10.6±10

11.8

PVC

13.8±0.25

RG223/U

SPC

1/0.889

2.95±0.10

SPC

0.127

16*7

9±10

0.127

16*7

10±10

4.47

PVC

5.50max.

Electrical Characteristics

Item	Attenuation (Max.)		Characteristic Impedance	Standard capacitance	Max. Working Voltage	Standard Attenuation
						1 MHz	10 MHz	30 MHz	100 MHz	300 MHz	1000 MHz	300 MHz
	dB/km	MHz	Q	nF/km	kV	dB/km
RG5B/U	213	400	50±2	93.5	3.0	-	-	-	79	141	289	548
RG6A/U	213	400	75±3	67.3	2.7	-	28	48	92	171	361	656
	754	3000
RG8A/U	197	400	52±2	96.8	4.0	-	-	-	69	138	295	590
RG9B/U	200	400	50±2	98.4	4.0	-	-	-	75	138	285	584
	715	3000
RG11A/U	171	400	75±3	67.3	4.0	7.1	23	41	76	139	-	-
	605	3000
RG13A/U	187	400	74±3	67.3	4.0	7.1	23	41	76	139	-	-
RG14A/U	141	400	52±2.5	96.8	5.5	-	-	-	46	92	204	426
	459	3000
RG17A/U	92	400	52±2	96.8	11.0	-	-	-	28	59	138	328
	361	3000
RG22B/U	345	3000	95±5	52.5	1.0	-	-	56	118	230	-	-
RG34B/U	125	400	75±3	67.0	5.2	4.3	13	25	48	90.0	-	-
RG55B/U	384	400	53.5±2.5	93.5	1.9	-	33	66	138	259	525	1000
RG58C/U	459	400	50±2	93.5	1.9	-	43	82	174	315	721	1480
	1640	3000
RG59B/U	295	400	75±3	67.3	2.3	-	34	60	112	202	-	-
	983	3000
RG62A/U	263	400	93±5	44.3	0.75	-	33	56	102	181	328	590
RG63B/U	187	400	125±6	32.8	1.0	-	20	36	66	118	230	394
RG-71B/U	263	400	93±5	44.3	0.75	-	33	56	102	180	328	590
RG122/U	590	400	50±2	105	1.9	-	-	-	195	345	655	-
RG133A/U	187	400	95	53	4.0	7.1	23	40	76	140	-	-
RG174/U	630	400	50±2	101	1.1	-	190	-	380	-	860	-
RG212/U	213	400	50±2	100	2.5	-	-	-	89	162	320	624
	787	3000
RG213/U	181	400	50±2	100	4.0	-	-	-	69	128	257	515
	623	3000
RG214/U	181	400	50±2	100	4.0	-	-	-	67	123	249	501
	623	3000
RG215/U	181	400	50±2	100	4.0	-	-	-	73	134	268	535
	623	3000
RG217/U	141	400	50±2	100	6.0	-	-	-	50	94	196	410
	459	3000
RG223/U	384	400	50±2	100	1.9	-	-	-	129	230	443	938
	1320	3000
