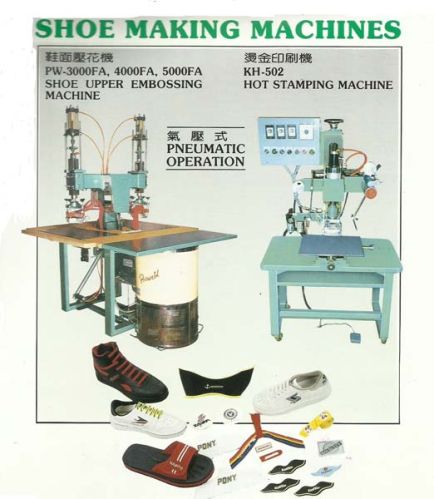

High Frequency Embossing Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Sited in Taiwan, we are one of the high-standing Manufacturers, Suppliers and Exporters of the High Frequency Embossing Machines across the globe. In line with the global quality standards, our High Frequency Embossing Machines (PWN-4000FA, PWN-8000FA) are suitable for processing the materials like pure PVC, soft PVC, PU, EVA, special fabric PVC materials, rexine with 30% or more PVC etc. Buy them from us at feasible prices. Applications Textile fabric PVC on cloth. Traveling bags, Handbags. Stationery, Name-plate badges. Foot wear, Trade mark labels, Stickers.

View More Details

Send Enquiry

Technical Specifications

Model	PWN-4000FA	PWN-8000FA
Type of operation	Pneumatic	Pneumatic
H.F. Out-Put Power	4 KW	8 KW
Input Power	6.5 KVA	15 KVA
Oscillation Frequency	40.68 MHZ	27.12 MHZ
Oscillation Tube	E3062TV	7T69RB
Power Supply	AC 220/380/400/415/440V 3Dia./1Dia. Voltage to be arranged at instruction.	AC 220/380/400/415/440V 3Dia./1Dia. Voltage to be arranged at instruction.
Rectifier	Silicon Diode	Silicon Diode
Max Gap of Electrodes (mm)	170	170
Press Stroke (mm)	50	50
Max Pressure (kgs)	200	300
Lower Electrode Size (mm)	350 x 700	350 x 700 / 400 x 800
Net Weight (kgs)	300	500
Gross Weight with Packaging (kgs)	400	600
Size of Wooden Case (cm)
