High-Frequency Induction Heating Machine

We are offering High-Frequency Induction Heating Machine SMJRG-35.
Packaging & Delivery
Packaging Detail: Palletizing or as customer option
Delivery Detail: 1~2 weeks following receipt of 30% down payment.
Specifications:
Equipment power; From 15KW to 45KW
1). It adopts MOSFET(high-frequency 15kw)or all-solid-state IGBT and the variable flow control technology of new generation of our company; 2. Its output oscillation frequency is 30-80kHz; It is suitable for quick heating of small workpiece.
3). Energy efficient, high power factor and power efficiency
4). Working ability of consecutive 24 hours 100% full load
5). The control selection function for constant output voltage or constant current/constant power
6). Frequency, power, voltage and current full display, adjustable heating, holding time(0.1s-99.9s)

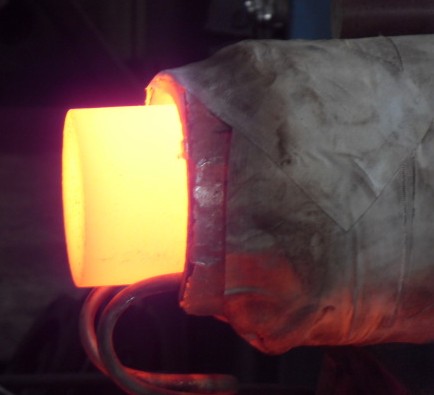

7). Used for; Metal quenching, anneal welding small-scale through heating and small-scale forging
Technical parameter:
1). Max input power 35KW; Max input current50A;
2). Input voltage: Three-phase 340V-420V, 50or 60Hz
3). Oscillation frequency: 30kHz-80kHz;
4). Request of cooling water: Hydraulic pressure≥ 0.3Mpa, flow rate≥ 10L/Min;
5). Temperature of cooling water: Water temperature≤ 45ºC
6). Weight and volume:
Legnerator box weight(Kg): 35 volume(cm)length × Width× Height: 59× 25× 48
Capacitance box: Weight(kg): 32 volume(cm)length× Width× Height: 48× 25× 45mes
7). Waterway of power supply:
Control box: One water inlet, one water outlet
Capacitance box: Four water inlets, three water outlets
(can make corresponding change according to user's request)
