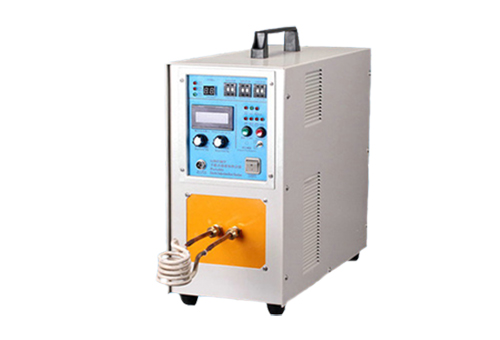

High Frequency Induction Welding Machine

Introduction of high frequency induction welding machine :
the high frequency induction heating machine uses a series resonant circuit , the resonant output low voltage , high current frequency power by high frequency transformer.
pcd pcbn inserts welding operating process :
step 1: welding preparation
welding powder, silver copper foil , pcd pcbn blanks, cutter body .
Between the cutter body and pcd & pcbn blanks put into the silver copper foil and silver copper powder .
*cbn inserts with copper foil , 800~900℃
*pcd inserts with silver foil , 750℃
step 2 : high frequency induction welding machine
step 3 : welding
opening the water and electricity of high-frequency welding machine . Then opening the panel. Putting the cutter body into the sensor, pressing the remote control switch, starting heating. When the workpiece is heated to 830-860 ℃, copper foil melting and filling weld.
Finally, pressing the "stop" button to stop heating.
The advantage of the machine for welding cutting tools:
* we only need to copper (or silver) welding piece put between the cutter head and the substrate can be a good place.
* the induction heating speed, high efficiency.
* energy saving and low cost.
* the oxidation area is small.
* the full solid welding.
