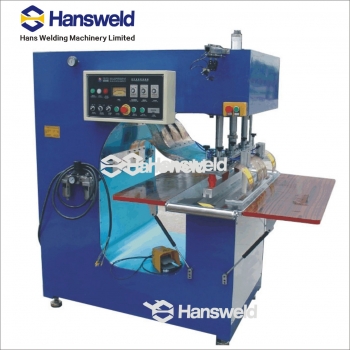

High Frequency Tarpaulin Welding Machine

We are offering high frequency tarpaulin welding machine.
weld-750 is the typical high frequency welding machine which is designed and made
for making tents ,military tents , military cover , tensile membrane construction and
many application related to tarpaulin or pvc &pu coated fabric
main application :applied for inflatable tent , tarpaulin, sunshade,canvas,painting canvas,
film curtain and relatives for automatic stepping welding and connecting.
model welder-750
power 8000w 10000w 12000w 15000w
power supply 380v 3p 50hz 380v 3p 50hz 380v 3p 50hz 380v 3p 50hz
frequency 27.12mhz 27.12mhz 27.12mhz 27.12mhz
input power 15kva 18kva 20kva 25kva
rectifier silicon diode silicon diode silicon diode silicon diode
oscillation tube 7t69rb e3069 e3130rb 8t85rb
max pressure 500kg 800kg 800kg 1000kg
gap of electrodes 150mm 150mm 150mm 150mm
cylinder stroke 150mm 150mm 150mm 150mm
size of upper electrode 50*50*800mm 50*50*800mm 50*50*800mm 50*50*800mm
size of bottom electrode 450*900mm 450*900mm 450*1000mm 450*1100mm
