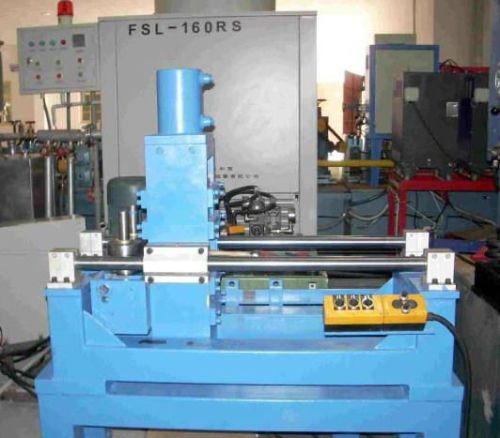

High Frequency Welded Pipe Seam-Inside Leveling Machine

We offer High frequency Welded Pipe Seam-Inside Leveling Machine.
Tube Mill Leveling Machine and Inside Welding Seam Control Machinery
Detailed Product Description
1. Welded pipe levelling machine.
2. Use for industrial pipe making machine
3. Weld seam-inside leveling
4. ISO9001
1. Description: Weld seam-inside leveling machine, stainless steel welding pipe levelling machine.
2. Matching: Will be matched with industrial pipe making machine.
3. Process :diameter range: 12-273MM.
5. Introduction:
The stainless steel welded pipe is better than the stainless steel seamless pipe in material and mechanical property. But the elimination for the weld seam inside and outside, especial the weld seam inside have been puzzling the manufacturer of stainless steel pipe. Althought have the solution of drawknife grind device inside, it can not have much help, which have been blocking the development of the stainless steel welded pipe industry. At present, oil, chemical, nuclear power, boiler, medicine industries mainly use stainless steel seamless pipe.
6. Component:
Inside and outside weld seam leveling equipment, hydraulic air control system, auto electric hydraulic air control system with PLC, hydraulic cycling equipment for mold and roll.
7. Working procedure:
With more than the high and weld stainless welded pipe after level after rolling roll over, high removed, welded pipe section into a level in welding rods, elliptical stuck pipe welded pipe, followed by vertical roll rolling, welded pipe section into a mandrel, with full welded pipe separation in the frame of the cylinder back to when proper place, then the second rolling cycle.
9. Technical parameters:
Model Diameter hickness Production SpeedPower
BGP-40 O.D.12-51mm 0.5-2.0mm 0-6mmin 7.5KW
BGP-50 O.D.32-76mm 0.5-3.0mm 0-6mmin 11KW
BGP-60 O.D.50-114mm 0.5-3.5mm 0-4mmin11KW
BGP-80 O.D.89-168mm 0.5-4.0mm 0-3mmin15KW
BGP-100 O.D.100-219mm 0.5-6.0mm 0-2mmin15KW
BGP-100 O.D.150-273mm 0.5-8.0mm 0-1.5mmin18.5KW
