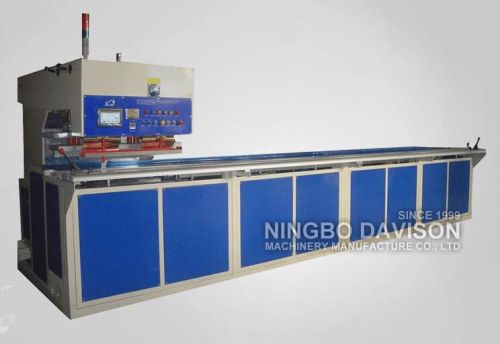

High Frequency Welding Machine In China for parking shed

Model DXCW-ZD-15KW
Output power 15KW
Voltage 380V
Frequency 27.12MHZ
Electron tube 8T85
Max pressure 1000kgs
Upper electrode 1000x250x35mm
Lower electrode 1100x280x35mm
Working table 15m(can be ordered)
Welding time 0-10s
N.W 2500kgs
Machine overview and features
1. different welding area decide the different output power.  output power from 8KW to 35KW
2. There is cavity designed specially for putting material conveniently.
3. Special grounding device makes the machine more stable.
4. It adopts coaxial output tuner which makes the output powerful. Meanwhile, it adopts 5557 sparking device to protect mold well. The welding time can be adjusted according to different material and thickness.
5. Equiped with air tank (inside the machine )  , make the machine more stable when working
6. The machine can stop working automaticlly if the worker enter the dangerous area .
7. Worker can stand in the machine and move together to check the welding result
8. all rails use solid material
9. The cavity max can suffer 20kgs per meter , under the cavity have support design .
10. The worker can walk in the machine to check the welding result
11. machine equiped with current limiter , can help the worker find the most stable output power , and the current not over the setting parameter .
12. Little noise when the machine moving
